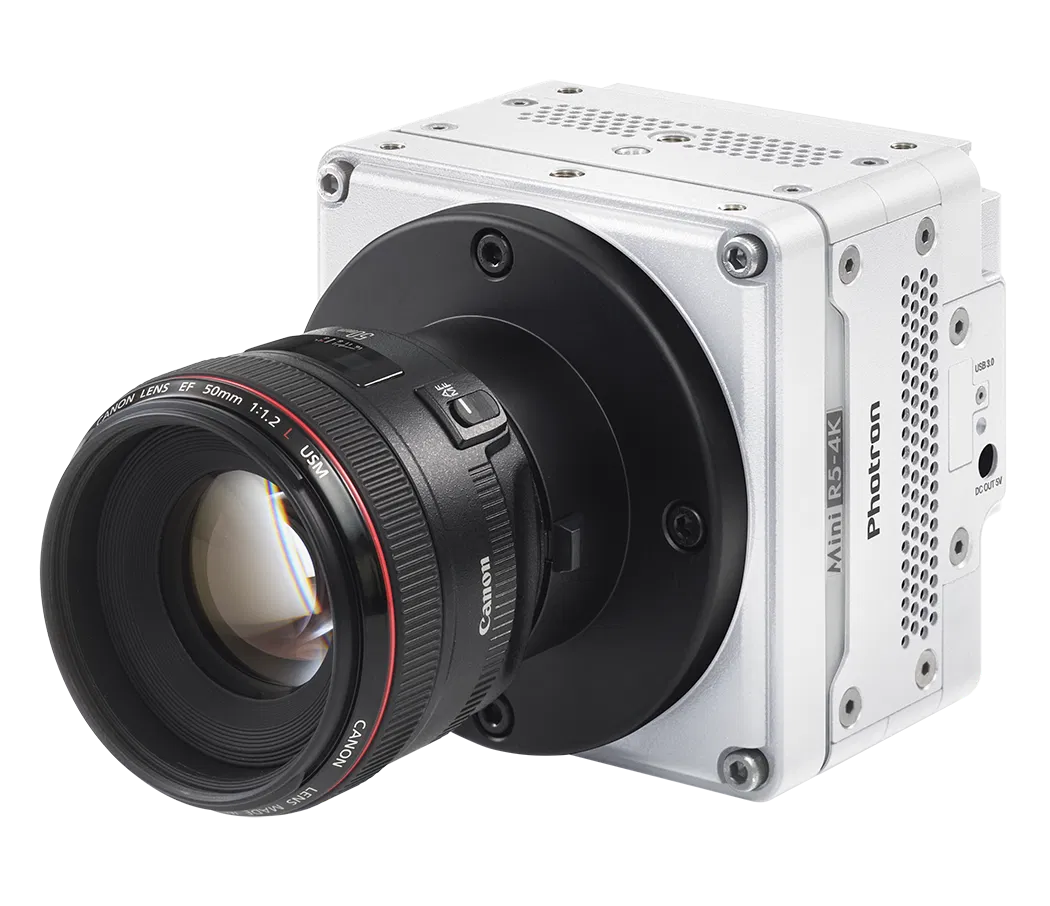

Photron Mini R5-4K series
- Technology
- High-speed cameras
- Partner
- Photron
FASTCAM Mini series high speed camera with a proprietary 4K/UHD (4096×2304 pixel) sensor is ideally suited for applications where observation of a large spatial area without loss of image quality is required. Applications such as automotive safety testing (car-to-car, pedestrian testing, barrier/ roll-over testing and curtain airbag), fluid dynamics (PIV, microfluidics) material testing (DIC, drop testing) are some of the main applications. The FASTCAM MINI R-4K cameras offers 12-bit image recording rates of up to 750fps (MINI R5-4K) and 1,250fps (MINI R5-4K) at 4K resolution. For even higher frame rates, the camera offers recording rates of up to 150,000fps (MINI R5-4K) and 200,000fps (MINI R5-4K) at lower image resolutions.
The FASTCAM MINI R-4K cameras are compact, rugged, lightweight, and provides the best light sensitivity and image quality in their class. Key features of the FASTCAM MINI R-4K include an internal mechanical shutter that allows for remote system calibration, High G rated body and a high-performance 10-Gigabit Ethernet interface.
Intuitive and feature rich Photron FASTCAM Viewer (PFV) software is included with each FASTCAM MINI R5-4K camera. Also included is a Photron Device Control SDK that allows integration of the camera with user-specific software, and libraries for controlling the camera within a MATLAB® or LabView environment.
Range features
A high level overview of what this range offers
- Fastcam Mini R series 4096 x 2304 pixels
- Compact housing 120 x 120 x 94.4mm
- Versatile mounting options on sides
- High G rated (100G 10ms 6 Axis)
- Sealed body design
- 0 GigE Ethernet connection
- 12bit monochrome/ 36bit colour
- Stop fan function (eliminate vibration)
- Service upgradeable to higher spec version
- RAM memory up to 64GB
- IRIG-B input for time stamping
- Excellent PFV software (included)
- Multiple lens mounts available (F/G, C mount, optional EF mount
- Memory partitioning
- Colour and monochrome sensor available
Downloads
for Photron Mini R5-4K series
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Resolution | Framerate – fps (@ full resolution) | Maximum framerate | Framerate @ Full HD | Pixel size (µm) |
|---|---|---|---|---|---|
Mini R3-4K | 4096×2304 | 750 | 150.000 | 3000 | 6.5 |
Mini R5-4K | 4096×2304 | 1250 | 200.000 | 5280 | 6.5 |
