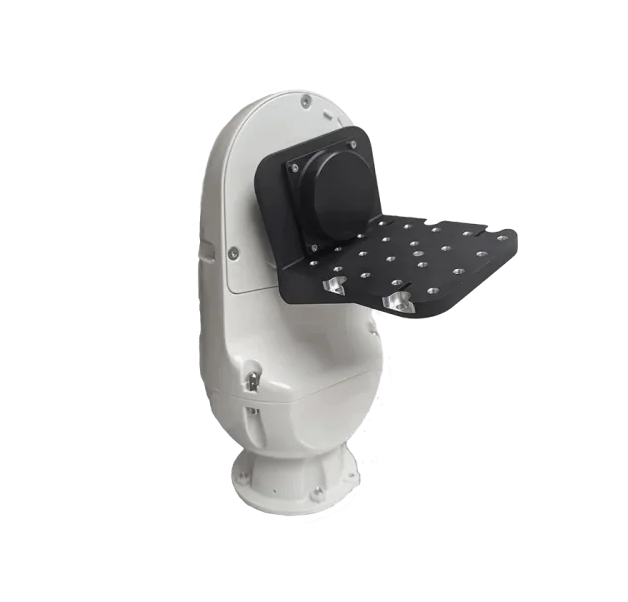

The Lelantos family is Overview’s line of high-performance, direct-drive Pan & Tilt units, engineered for applications requiring ultra-precise, agile, and maintenance-free sensor or imaging payload pointing.
These systems deliver true zero backlash, continuous rotation, and a broad speed range — making them ideal for defence, security, broadcast / Pro AV, free-space optical or RF comms, environmental sensing, and more.
Lelantos units power a wide range of pointing and imaging systems, for example:
-
Surveillance camera systems and PTZ imaging rigs
-
LiDAR / volumetric scanning payloads
-
Free-space optical or RF communication terminals
-
Tracking systems, radar / sensor pointing
-
Lighting or illumination systems in remote or mobile installations
-
Environmental monitoring platforms
Because of their direct-drive design, Lelantos units excel where smooth, silent, and repeatable motion is critical.
Range features
A high level overview of what this range offers
-
Low SWaP (Size, Weight, Power) — compact units with high performance
-
Zero back-lash, maintenance-free — less long term maintenance and higher stability
-
High agility + precision — able to perform both fine slow moves and fast repositioning
-
Robust for real-world use — IP-rating, sealed designs, corrosion-resistant materials, designed for harsh environments.
-
Flexible & integratable — supports a wide range of payloads and control systems
-
Continuous rotation – 360° unlimited pan and tilt motion supported, via various slip-ring options.
-
Payload Capacity & torque – Supports payloads up to ~15 kg (depending on variant), with torque up to 4 Nm.
-
Easy Integration – Standard control interfaces (USB, CAN, I²C), payload mounting options (e.g. optical breadboard or screw patterns), and optional customisations.
-
Slip-ring Options – standard copper slip-ring or optional hybrid optical / copper slip-ring for high bandwidth payloads.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Dimensions (H×D×W mm) | Unit Mass | Pan / Tilt Torque (Nm) | Typical Payload | Max Speed | Slip-Ring |
|---|---|---|---|---|---|---|
Lelantos1000 | 362 × 162 × 162 | ~5 kg | 03-Mar | < 4 kg | ~450°/s | Copper (power & ground) Overview Ltd |
Lelantos2000 | 365 × 190 × 190 | ~5 kg | 04-Mar | < 10 kg | ~720°/s | Hybrid (with CAN, power) Overview Ltd+1 |
Lelantos3000 | 506 × 190 × 190 | ~8 kg | 04-Apr | < 15 kg | ~450°/s | Hybrid (with CAN, power) Overview Ltd+1 |
