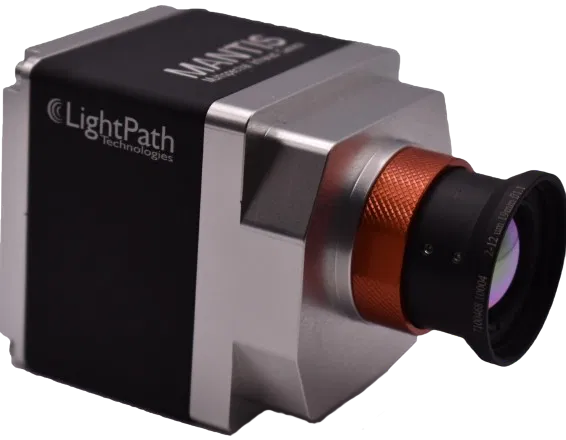

The LightPath Technologies Mantis™ infrared camera is a unique product allowing to visualise simultaneously very hot and colder objects by covering the full infrared spectrum from 2µm (MWIR) up to 12µm (LWIR). It is based on an dedicated uncooled broadband microbolometer detector that makes it very price competitive vs stirling cooled MWIR imagers.
The Mantis™ camera is proposed either lens-less or equipped with broadband optics also manufactured by LightPath Technologies for diverse industrial applications like gas sensing (OGI) or furnace monitoring (LightPath can deliver the camera with a bespoke borescope) or for Aerospace & Defence applications like infrared multi-band counter-measures.

Range features
An overview of what’s in the range
- Uncooled broadband multi-spectral (MWIR-LWIR) infrared camera
- Cover the fullinfrared spectrum from 2µm up to 12µm
- Microbolometer detector with 640 x 480 pixels, 17 µm pitch
- Supplied with broadband infrared lens 19mm, 75mm or custom
- Large choice of video interfaces: NTSC/PAL, HDMI, MIPI, USB3, CameraLink, GigE
- Optional: Embedded AI Accelerator (Hailo-8).
