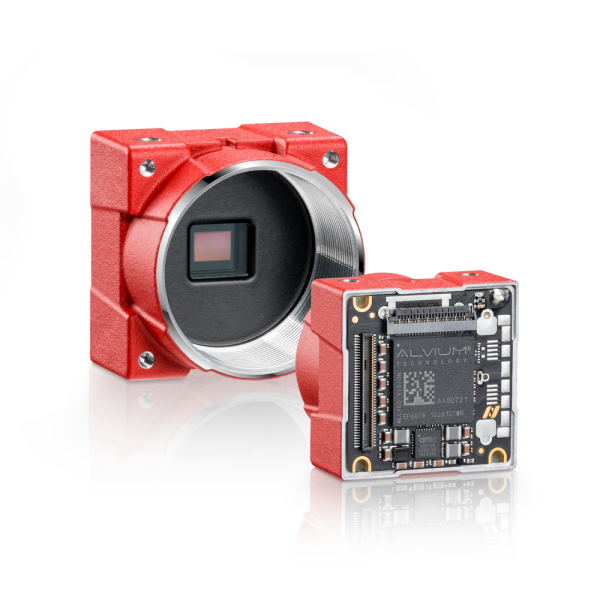

Alvium 1800 C series MIPI CSI-2 Embedded Vision Cameras
- Technology
- Infrared thermal cores
- Partner
- Allied Vision
Alvium 1800 C cameras are a high-performance embedded vision solution designed for machine vision, robotics, industrial automation and other cost-effective embedded applications. Built on the powerful Alvium platform with support for MIPI CSI-2 up to 4 lanes, this range delivers industrial-grade imaging quality and flexibility in a compact “sugar-cube” form factor. These cameras pair Sony CMOS global shutter sensors with advanced on-board image processing for dependable capture, even in dynamic or fast-moving scenes.
The Alvium 1800 C series brings the performance and robustness of industrial cameras into the embedded world by combining:
- High-quality Sony global shutter sensors for sharp, low-distortion imaging.
- Embedded MIPI CSI-2 interface for direct connection to popular SoCs like NVIDIA Jetson, Xilinx Zynq, and NXP i.MX platforms.
- Compact bare board or open-housing formats for space-constrained systems.
- On-board image processing (ISP) to offload host CPU tasks and improve real-time performance.
Whether you’re developing vision-assisted robotics, automated inspection systems, or intelligent edge devices, the Alvium 1800 C series delivers the image quality and integration ease embedded developers demand.
Range features
A high level overview of what this range offers
-
Excellent image quality – Sony global shutter CMOS sensors minimise motion artefacts and capture clean images in dynamic environments.
-
Flexible MIPI CSI-2 interface – Up to four lanes for high throughput to embedded CPUs and SoCs.
-
Compact & lightweight design – Small footprint for space-limited devices, from robotics to smart sensors.
-
On-Board ISP processing – Advanced image corrections performed on the camera to reduce host workload.
-
Wide embedded support – Drivers and APIs available for NVIDIA Jetson, Xilinx, and other embedded platforms.
-
Multiple lens mount options – Choose from C-Mount, CS-Mount or S-Mount (M12) to suit your optical requirements.
-
Scalable performance range – Models available from low-resolution/high-speed to high-resolution imaging.
-
Energy-efficient & battery-friendly – Intelligent power management enables low-power or battery-operated designs.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Resolution | Sensor | Shutter | Frame Rate* | Lens Mount |
|---|---|---|---|---|---|
1800 C‑240C COLOR BAREBOA | ~0.4 MP | Sony IMX287 | Global | – | Bare board |
1800 C‑319C COLOR C‑MOUNT | ~3.2 MP | Sony IMX265 | Global | ~54 fps | C-Mount |
1800 C‑500C COLOR S‑MOUNT | ~5 MP | Sony IMX547/IMX548 | Global | ~79 fps | S-Mount |
1800 C‑510C COLOR S‑MOUNT | ~5.1 MP | Sony IMX548 | Global | ~81 fps | S-Mount |
1800 C‑507C COLOR BAREBOA | ~5.1 MP | Sony IMX547 | Global | ~79 fps | Bare board |
1800 C‑291C COLOR BAREBOA | ~0.9 MP | Sony IMX291 | Global | – | Bare board |
1800 C‑291M MONO C‑MOUNT | Mono variant | Sony IMX291 | Global | – | C-Mount |
1800 C‑234M MONO BAREBOAR | ~2.4 MP | Sony IMX249 | Global | ~40 fps | Bare board |
