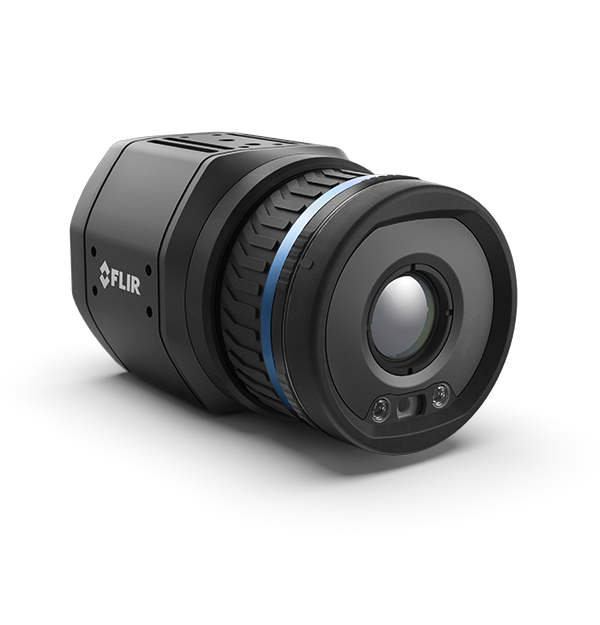

A700 Thermal Smart Sensor R&D Camera
- Technology
- Infrared R&D cameras
- Partner
- Teledyne FLIR
The FLIR A700 Thermal Smart Sensor Camera sets a new standard in industrial thermal monitoring. As part of the advanced FLIR Axxx-Series, it combines exceptional 640 × 480 thermal imaging with intelligent edge analytics, enabling real-time insights without the need for external processing systems.
Whether you are safeguarding critical infrastructure, ensuring production quality, or implementing early fire detection, the A700 delivers dependable performance under demanding conditions. With its high measurement accuracy (< ±2 °C), versatile lens options, and robust industrial connectivity, it provides the flexibility to support quality assurance, predictive maintenance and safety compliance in virtually any environment.
Key features & benefits
- Accurate thermal measurement: High-resolution thermography ensures reliable data for process monitoring and quality control.
- Smart edge analytics: On-camera functions such as polygons and reference-based alarms allow immediate, informed decisions.
- Flexible optics: Interchangeable lenses (6°, 14°, 24°, 42°) and motorised/manual focus options, plus Macro Mode for small-scale targets.
- Industrial connectivity: GigE Vision, RTSP, Power over Ethernet, and opto-isolated digital I/O with optional Wi-Fi integration.
- Rugged and compact design: Robust housing, IP54 rating (extendable to IP66 with accessories), and compliance with industrial shock and vibration standards
Typical applications
- Critical infrastructure: substations, transformers, energy distribution
- Quality assurance and inline inspection: automotive, electronics, packaging
- Early fire detection: recycling facilities, conveyor systems, silos
- Asset condition monitoring: bearings, motors, ovens, kilns
Downloads
for A700 Thermal Smart Sensor R&D Camera
Specifications
IR Resolution | 640×480 pixels |
Detector Pitch | 12 µm |
Pixel Pitch | 12 µm |
LWIR Spectral Range | 7.5–14.0 µm |
Detector Type | Uncooled microbolometer |
Dynamic Range | 16-bit |
Thermal Sensitivity/NETD | Lens dependent: <30 mK to <40 mK |
Frame Rate | 30 Hz |
Standard Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
PoE or DC power | |
Visible camera | MSX mode (image enhancement) |
Data transfer | GigE (optional wifi) |
Manual & motorised focus lens | incl macro lens |
Focus | One-shot contrast, motorized, manual |
