PCI-PCe I/O Boards
Industry leading PCI-PCIe solutions from Acromag. The PCIe board interfaces AcroPack® mezzanine modules to a PCI Express bus on a PC-based computer system. It is designed to provide isolation between the AcroPack® field I/O signals and the host when used with an isolated AcroPack® module.
More than 25 AcroPack® modules are now offered for a wide variety of analog I/O, digital I/O, communication, avionics, fieldbus, and FPGA computing functions.
Range features
A high level overview of what this range offers
- PCI-PCIe form factor
- Long life cycle
- Operating temperature – -40 to 85°C
- More than 25 AcroPack® I/O function modules, including analog, digital I/O, communication and 1Gb Ethernet functions
- Plug-and-play carrier configuration and interrupt support
- Up to four AcroPack®’s can plug into a single carrier card in any I/O combination
- Optional isolated power supplies
- VxWorks, Windows and Linux software support
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Form factor | I/O function | Operating temperature | Operating system software |
|---|---|---|---|---|

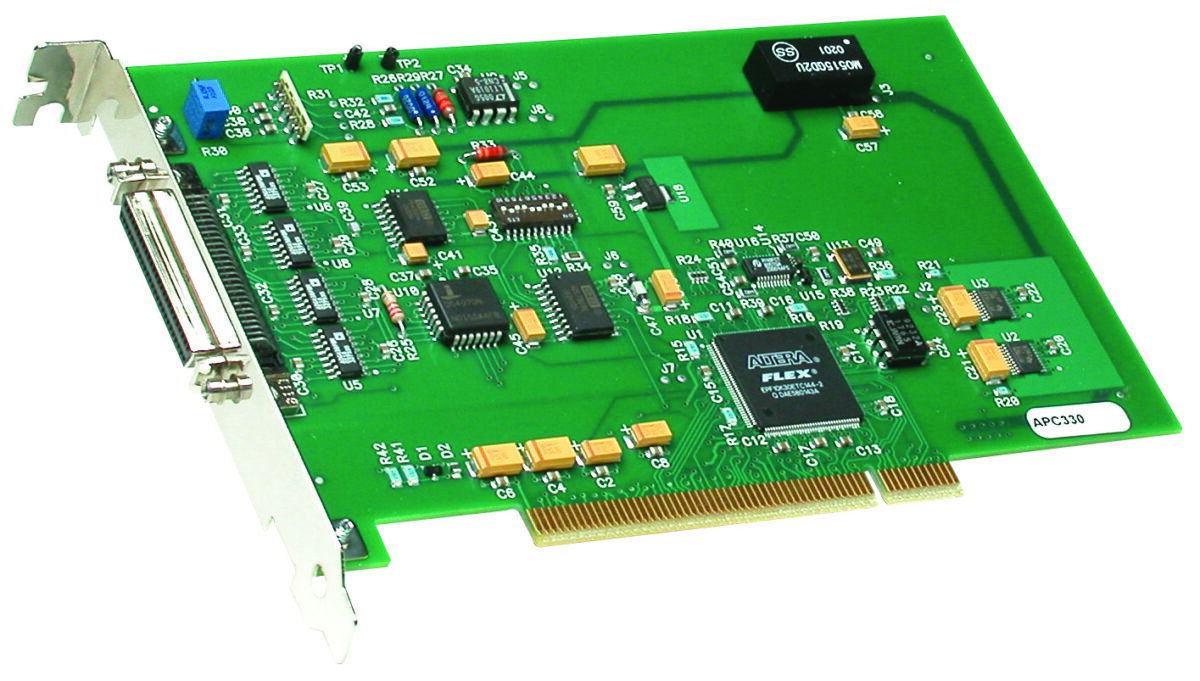

APC330 | PCI | Analog input- 16 differential or 32 single-ended channels | -40 to 85°C | VxWorks, Linux and Windows |
APCe7012 | PCIe | 1 AcroPack module slot, with a variety of I/O functions (A/D, D/A, digital in, digital out, serial I/O) | -40 to 85°C | VxWorks, Linux and Windows |
APCe7022 | PCIe | 2 AcroPack module slots, with a variety of I/O functions (A/D, D/A, digital in, digital out, serial I/O) | -40 to 85°C | VxWorks, Linux and Windows |
APCe7040 | PCIe | 4 AcroPack module slots, with a variety of I/O functions (A/D, D/A, digital in, digital out, serial I/O) | -40 to 85°C | VxWorks, Linux and Windows |
APCe7043E | PCIe | 4 AcroPack module slots, with a variety of I/O functions (A/D, D/A, digital in, digital out, serial I/O). | -40 to 85°C | VxWorks, Linux and Windows |
