Industry Pack (IP) I/O Boards
Acromag’s industry pack (IP) solutions are designed for VME, CompactPCI®, and PCI computer buses and are well-suited for COTS projects. Many models are available for a variety of FPGA, analogue, digital I/O, counter/timer and serial functions. These IP modules offer an unmatched balance of performance, features, and price for the best value in IP I/O.
Range features
A high level overview of what this range offers
- Industry pack compliance (ANSI/VITA 4-1995)
- Long life cycle
- Variety of FPGA, analogue, digital I/O, counter/timer and serial functions
- Operating temperature: -40 to 85°C
- MTBF: Over 4M hours
- Software-programmable
- VxWorks, Windows and Linux software support
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Form factor | I/O function | Operating temperature | Operating system software |
|---|---|---|---|---|
IP-EP200 | Industry pack | Cyclone II FPGA with digital I/O | -40 to 85°C | VxWorks, Linux and Windows |

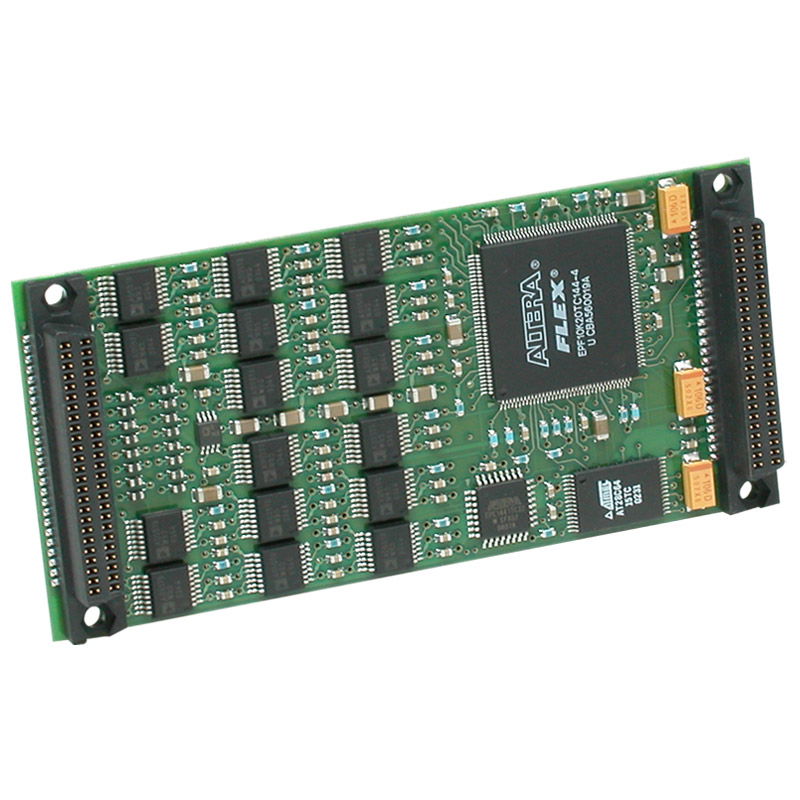

IP220A | Industry pack | Analogue output module, 12-bit D/A | -40 to 85°C | VxWorks, Linux and Windows |
IP230A | Industry pack | Analogue output module, 16-bit D/A | -40 to 85°C | VxWorks, Linux and Windows |
IP231 | Industry pack | Analogue output module, 16-bit D/A w/RAM buffer | -40 to 85°C | VxWorks, Linux and Windows |
IP235A | Industry pack | Analogue output module, 16-bit D/A | -40 to 85°C | VxWorks, Linux and Windows |
IP236A-8 | Industry pack | 16-bit D/A analogue output modules with FIFO buffers | -40 to 85°C | VxWorks, Linux and Windows |
IP320A | Industry pack | Analogue input module, 12-bit A/D | -40 to 85°C | VxWorks, Linux and Windows |
IP330A | Industry pack | Analogue input module, 16-bit A/D | -40 to 85°C | VxWorks, Linux and Windows |
IP340 | Industry pack | Analogue input module, simultaneous sample & hold | -40 to 85°C | VxWorks, Linux and Windows |
IP400 | Industry pack | Digital input module, high voltage inputs | -40 to 85°C | VxWorks, Linux and Windows |
IP405 | Industry pack | Digital output module, high voltage outputs | -40 to 85°C | VxWorks, Linux and Windows |
IP408 | Industry pack | Digital input/output module, differential I/O | -40 to 85°C | VxWorks, Linux and Windows |
IP440A | Industry pack | Digital input module, isolated | -40 to 85°C | VxWorks, Linux and Windows |
IP445A | Industry pack | Digital output module, isolated | -40 to 85°C | VxWorks, Linux and Windows |
IP470A | Industry pack | Digital output module, TTL level | -40 to 85°C | VxWorks, Linux and Windows |
IP500A | Industry pack | Serial communication, 232 industry pack module | -40 to 85°C | VxWorks, Linux and Windows |
IP560 | Industry pack | CAN bus interface industry pack modules | -40 to 85°C | VxWorks, Linux and Windows |
IP570 | Industry pack | MIL-STD-1553 bus interface modules | -40 to 85°C | VxWorks, Linux and Windows |
IP480 | Industry pack | Counter/timer module | -40 to 85°C | VxWorks, Linux and Windows |
