TEWS Technologies’ XMC (Switched Mezzanine Card) I/O product family delivers a versatile range of high-quality interface modules designed for demanding embedded applications — including industrial automation, communications, networking, and ruggedised platforms.
With a broad array of Ethernet, serial, and FPGA-based modules, the XMC portfolio enables developers to integrate flexible I/O capabilities into PCIe-based systems while maintaining compliance with ANSI/VITA XMC standards for reliability and interoperability. The product range includes options for high-speed Gigabit and 10 Gigabit Ethernet, various serial protocols such as RS-232, RS-422, and RS-485, as well as FPGA modules that offer customisable logic for specialised processing needs.
This diversity ensures that system designers can select the optimal interface to meet their specific performance, bandwidth, and environmental requirements, making the XMC family suitable for both standard commercial and harsh industrial environments.
TEWS XMC I/O products are tailored for system integrators, embedded designers, and OEMs who require modular, rugged interface solutions that can be easily integrated into PCIe-based or carrier-supported systems. They are particularly suitable for industrial automation, test & measurement, networking infrastructure, and defence platforms where reliable I/O and extended environmental performance are critical.
Highlights of the line
-*Ethernet I/O Modules – From standard 4-port Gigabit (TXMC895) to SFP-capable (TXMC889) and high-speed 10G-capable modules (TXMC397), TEWS offers networking interfaces for a wide range of embedded applications.
-*Serial Communications – The “463” and “375” series provide flexible, programmable serial interfaces suitable for industrial and legacy protocol environments.
- FPGA-Enabled I/O – The “633” and “639” modules deliver reconfigurable logic and mixed analogue/digital I/O, ideal for custom processing or bespoke peripheral control.
Range features
A high level overview of what this range offers
-
Broad I/O support — Gigabit and 10 Gigabit Ethernet, SFP interfaces, high-density serial (RS-232/422/485), analogue/digital I/O, and reconfigurable FPGA modules.
-
Modular, standardised XMC form factor — Conforms to ANSI/VITA 42.x specifications for seamless integration into embedded systems supporting XMC mezzanine slots. Tews
-
High performance networking — Multi-channel Ethernet modules with support for IEEE-1588 PTP, AVB, auto-negotiation, and extended temperature ranges for industrial use.
-
Configurable serial interfaces — Programmable serial modules with flexible protocol support and software termination options for legacy and industrial communications.
-
FPGA-based custom I/O — User-configurable FPGA modules for bespoke logic, digital I/O expansion, or protocol conversion.
-
Rugged and reliable — Many variants support extended operating temperatures (e.g., −40 °C to +85 °C) for harsh environments.
-
Software ecosystem — Drivers and support packages for major operating systems ensure seamless deployment.
-
Flexible deployment options — XMC modules can be deployed in PCI Express carriers or embedded systems, enabling scalable I/O solutions.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Product / Variant | Primary I/O Function | Interfaces | Connector / I/O Location | Temperature / Rugged | Notes |
|---|---|---|---|---|---|
TXMC375-10R / -20R | 8-Channel Programmable Serial | RS-232/RS-422/RS-485 | Rear P14 / Rear P16 | −40 °C to +85 °C | Programmable serial with high baud support |
TXMC463-10R / -11R / -12R / -15R | 4-Channel Serial | RS-232 / RS-422 / mixed | Front RJ45 | −40 °C to +85 °C | High-performance async serial |
TXMC395-10R | 4-Channel Gigabit Ethernet | 10/100/1000 Mbps | Rear P16 (X12d/X8d) | −40 °C to +85 °C | PXE/iSCSI boot, IEEE 1588/PTP & AVB |

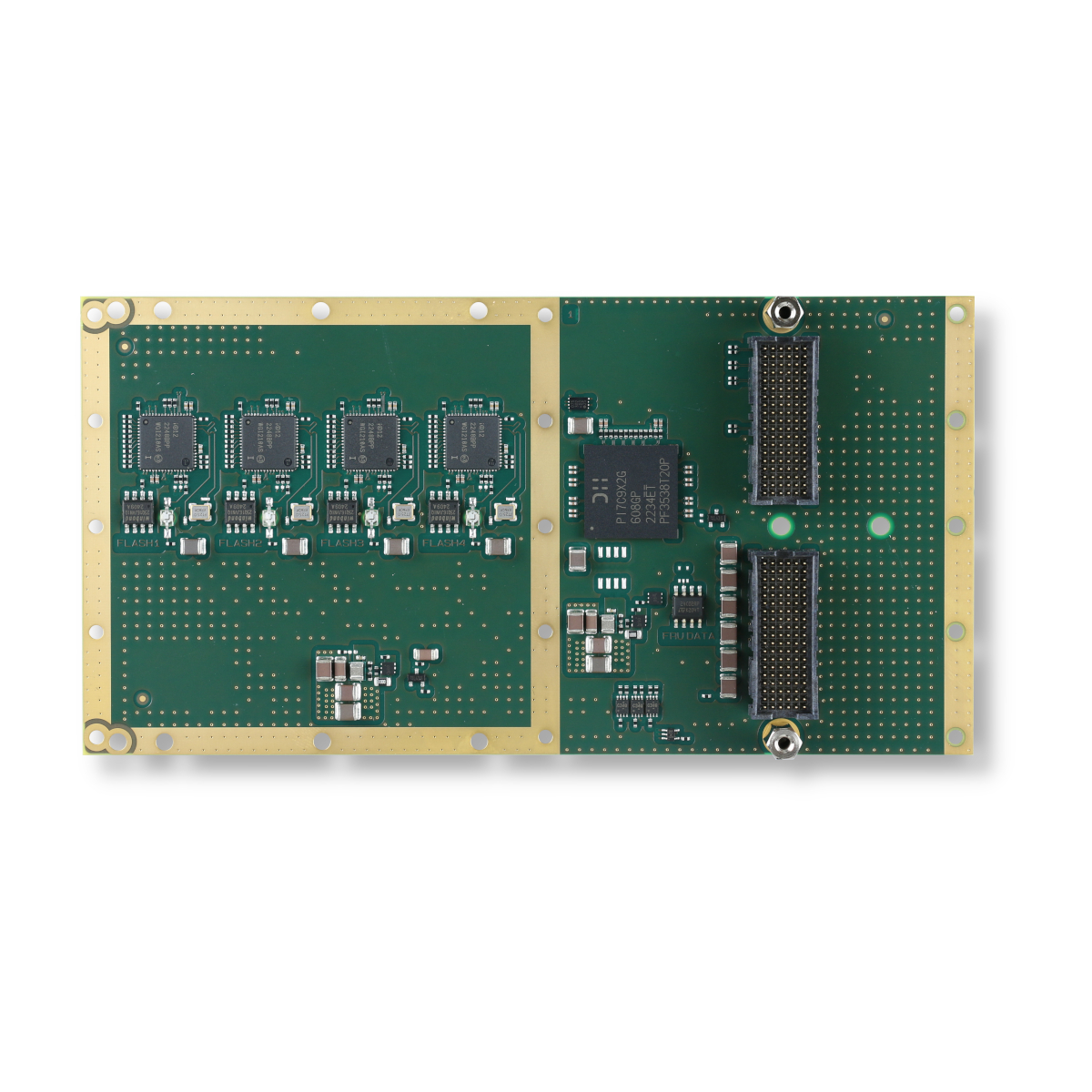

TXMC391-10R | 4-Channel 1000BASE-KX Ethernet | 4x 1000BASE-KX | Rear P16 (VITA 46.9) | −40 °C to +85 °C | Intel I210IS, PXE/iSCSI boot, IEEE 1588/PTP & AVB |
TXMC889-10R | 4-Channel SFP Gigabit Ethernet | SFP (1000Base-SX/LX/T) | Front SFP | −40 °C to +85 °C | Supports active optical / copper SFPs |
TXMC895-10R | 4-Channel 1000BASE-T Ethernet | 10/100/1000 Mbps | Front RJ45 | −40 °C to +85 °C | Intel I210IT, IEEE 1588/PTP & AVB |
TXMC397-10R / -20R | 2-Channel 10GBASE-T Ethernet | 100/1000/2.5/5/10 Gbps | Rear P16 | −40 °C to +85 °C | Dual 10G on conduction-cooled XMC |
TXMC897-10R / -20R | 2x 10GBASE-T + 2x SFP+ 10GbE | 10GBASE-T + SFP+ | Front RJ45 + SFP+ | −40 °C to +85 °C | Mixed 10G copper/fiber support |
TXMC633-xxR | FPGA-Based I/O Module | TTL / M-LVDS / Analog | P14 & P16 | −40 °C to +85 °C | Configurable digital/analog I/O |
TXMC639-10R / -11R | FPGA + Analog/Digital I/O | ADC/DAC + TTL | P14 & P16 | −40 °C to +85 °C | Kintex™-7 FPGA, mixed signal I/O |
