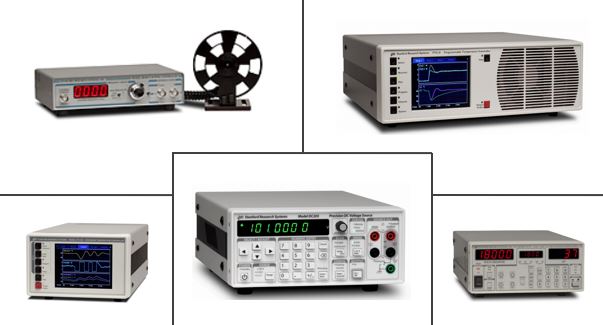

The DC205 low-noise, high-resolution DC voltage source is the right tool to use when a precision bias source is needed. Its bipolar, four-quadrant output delivers up to 100 V with 1 µV resolution and up to 50 mA of current.
The SR540 chopper will handle all your optical chopping requirements—from simple measurements to dual-beam and intermodulation experiments.
The PS300 series high voltage power supplies are rugged, compact, reliable instruments for just about any high voltage application.
The PTC10 programmable temperature controller is a modular system that can be configured to suit a wide range of applications. The system consists of the PTC10 controller and up to four I/O cards — two types of input cards for RTDs and thermocouples, and two types of output cards for driving heaters.
The CTC100 cryogenic temperature controller is configured to suit a wide range of research and industrial applications. The system consists of four sensor inputs, two powered and four analogue voltage outputs, and up to six feedback control loops.
For range details, please see the catalogue in the downloads section below.
Range features
A high level overview of what this range offers
DC205
- ±100 VDC range
- True 6-digit resolution
- 1 ppm/°C stability
- 0.0025 % accuracy (1 yr.)
- Triggerable voltage scans
- Low-noise design
- Linear power supply
- RS-232, USB and fibre optic interfaces
CTC100
- 4 temperature sensor inputs
- 2 powered outputs
- 4 analogue voltage outputs
- Up to 6 feedback control loops
- 4 analogue, 8 digital I/O channels
- Graphical touchscreen display
- Data logging
- USB, Ethernet, RS232 & GPIB
SR540
- 4 Hz to 3.7 kHz chopping frequencies
- Low phase jitter
- Single and dual beam experiments
- Sum & difference reference outputs
- Bolt clamp or rod mounting
PS300
- +20 kV, -20 kV, +10 kV, -10 kV,
- ±5 kV, ±2.5 kV, ±1.25 kV supplies
- 1 volt resolution
- 0.05 % accuracy
- Programmable limits and trips
- GPIB interface
- RS-232 interface (10 & 20 kV models)
PTC10
- +16 input channels
- 6 PID feedback control channels
- 50 Hz PID sampling
- Data logging
- USB, Ethernet, RS232 & GPIB
