PZ2100-series source measure units
- Technology
- Source measure units
- Partner
- Keysight
The Keysight PZ2100-series is the leading automated test equipment (ATE) solution that integrates enormous source/measure unit (SMU) resources into valuable rack space with flexible module options. The PZ2100 provides flexible scalability with multiple SMU module options covering a wide range of applications, from conventional static DC measurements down to 10 fA to emerging dynamic / pulsed measurements up to 15 MSa/s and down to 10 μs width. The PZ2100 provides an uncompromising high-density integration that fully uses available rack space, slots, or SMU module capabilities. The PZ2100 enables a lower cost per channel and 20x smaller rack space than conventional SMUs, significantly reducing your test costs and saving valuable rack space.
What’s in this range?
All the variants in the range and a comparison of what they offer
Save cost and valuable rack space
- Flexible configuration with highly integrated modules minimises test costs and rack space
- 5 SMU module options flexibly configurable and upgradable in 1U, 4 slot mainframe at lower cost/ch
- Scalable up to 20 ch, 20x higher density than conventional SMU
- SMU integrating pulser/digitizer eliminates needs of additional instruments
Wide application coverage from DC to dynamic measurements
- A Variety of module options having wide output range address application needs broadly
- Wide output range of up to 210 V / 3.5 A DC / 10.5 A pulse
- Low current measurement supported by min. 10 fA high resolution
- Dynamic/pulsed measurement with 15 MSa/s sampling rate and 10 μs narrow pulse
- Wide dynamic range with auto ranging and seamless ranging
Simple integration and time efficiency
- Single box solution with user-friendly GUI simplifies system integration and accelerates testing
- Single box solution simplifies synchronisation with multiple SMUs at <50 ns accuracy
- User-friendly GUI accelerates the test prototyping, debugging, and troubleshooting
- SCPI programming via LAN/USB/GPIB for easy adoption to various environment
- PathWave IV Curve Software enables quick measurements without programming
What’s in this range?
All the variants in the range and a comparison of what they offer
| Type | Model | |
|---|---|---|

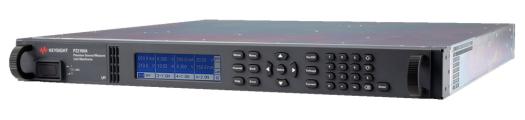

Mainframe | PZ2100A | 4 slots, 1U |
High-resolution SMU | PZ2110A | 1.25 MSa/s, 10 fA, 210 V, 315 mA DC/pulse |
High-speed SMU | PZ2120A | 1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse |
High-speed SMU | PZ2121A | 15 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse |
High-channel density SMU | PZ2130A | 100 pA, 30 V, 500 mA DC |
High-channel density SMU | PZ2131A | 500 kSa/s, 10 pA, 30 V, 500 mA DC/pulse |
