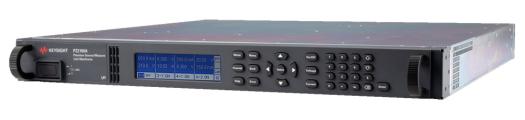

PZ2100-series Source Measure Units

The Keysight PZ2100-series is the leading automated test equipment (ATE) solution that integrates enormous source/measure unit (SMU) resources into valuable rack space with flexible module options.

The PZ2100 provides flexible scalability with multiple SMU module options covering a wide range of applications, from conventional static DC measurements down to 10 fA to emerging dynamic / pulsed measurements up to 15 MSa/s and down to 10 μs width. The PZ2100 provides an uncompromising high-density integration that fully uses available rack space, slots, or SMU module capabilities.

The PZ2100 enables a lower cost per channel and 20x smaller rack space than conventional SMUs, significantly reducing your test costs and saving valuable rack space.

PZ2100-series Source Measure Units

Range features

A high level overview of what this range offers

Save cost and valuable rack space

  • Flexible configuration with highly integrated modules minimizes test costs and rack space
  • 5 SMU module options flexibly configurable and upgradable in 1U, 4 slot mainframe at lower cost/ch
  • Scalable up to 20 ch, 20x higher density than conventional SMU
  • SMU integrating pulser/digitizer eliminates needs of additional instruments

Wide application coverage from DC to dynamic measurements

  • A Variety of module options having wide output range address application needs broadly
  • Wide output range of up to 210 V / 3.5 A DC / 10.5 A pulse
  • Low current measurement supported by min. 10 fA high resolution
  • Dynamic/pulsed measurement with 15 MSa/s sampling rate and 10 μs narrow pulse
  • Wide dynamic range with auto ranging and seamless ranging

Simple integration and time efficiency

  • Single box solution with user-friendly GUI simplifies system integration and accelerates testing
  • Single box solution simplifies synchronization with multiple SMUs at <50 ns accuracy
  • User-friendly GUI accelerates the test prototyping, debugging, and troubleshooting
  • SCPI programming via LAN/USB/GPIB for easy adoption to various environment
  • PathWave IV Curve Software enables quick measurements without programming

Downloads

for PZ2100-series Source Measure Units

pdf
PZ2100 Series – High Channel Density Precision Source Measure Unit Solution
Download
TypeModelDescription

Mainframe

PZ2100A

4 slots, 1U

High-resolution SMU

PZ2110A

1.25 MSa/s, 10 fA, 210 V, 315 mA DC/pulse

High-speed SMU

PZ2120A

1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse

High-speed SMU

PZ2121A

15 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse

High-channel density SMU

PZ2130A

100 pA, 30 V, 500 mA DC

High-channel density SMU

PZ2131A

500 kSa/s, 10 pA, 30 V, 500 mA DC/pulse
