E36100, E36150, E36200, E36300 and E36400 bench DC power supplies

Technology
DC power supplies
Partner
Keysight

Keysight bench power supplies provide low output ripple/noise along with layers of protection for your device. You have the option to select from full-featured programmable power supplies or simple variable DC power supplies.

With their bright displays, wide viewing angles, and form factors that are perfect for any bench, Keysight power supplies are the perfect choice.

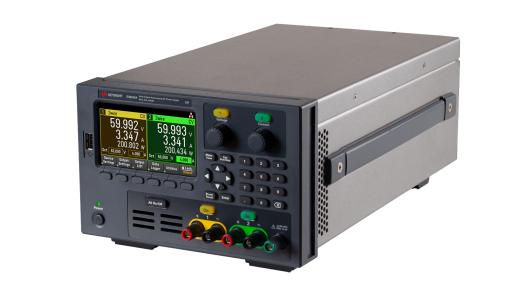

E36100, E36150, E36200, E36300 and E36400 bench DC power supplies

Range features

A high level overview of what this range offers

  • Low noise
  • Large colour display
  • Multiple outputs
  • Power up to 800W
  • Accurate programming and readback with 0.04% accuracy
  • Advanced features such as output sequencing, data logging, and list capability
  • Modern I/O – USB, LAN, and GPIB (optional)
  • BenchVue software for easy control and simple automation available

Downloads

for E36100, E36150, E36200, E36300 and E36400 bench DC power supplies

pdf
Keysight E36200 5992 3747 Guide
Download
pdf
4 Ways to Build your Power Supply Skill Set
Download
pdf
E36150 Series Value Bundle Ordering Guide
Download
pdf
Keysight E36150 Series Autoranging Bench DC Power Supply guide
Download
pdf
E36441A Autoranging Bench Power Supply
Download
pdf
Bench And Power Products
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelNumber of modelsPowerMaximum voltageMaximum curentOutputsInterfacesNoiseAccuracy

E36100-series

5

30 to 40W

Up to 100V

Up to 5A

1

USB, LAN

<350µVrms

0.05% + 3mV

E36150-series

2

800W

Up to 60V

1

USB, LAN, GPIB optional

&lt;5mVrms

Voltage 0.03%; Current 0.1%

E36200-series

4

200 or 400W

Up to 120V

Up to 40A

Up to 2 independent

USB, LAN, GPIB optional

<350µVrms

0.05% + 3mV

E36300-series

3

80 or 160W

Up to 25V

Up to 10A

3 independent

USB, LAN, GPIB optional

<350µVrms

0.03% + 5mV

E36400-series

1

400W

4x32V

10A

4

LAN, USB

Voltage 0.06% + 6 mV Current 0.1% + 6 mA

U8000-series

2

90 or 150W

30V

3 or 5A

1

Front panel control only

< 1 mVrms

0.35% + 20 mV
