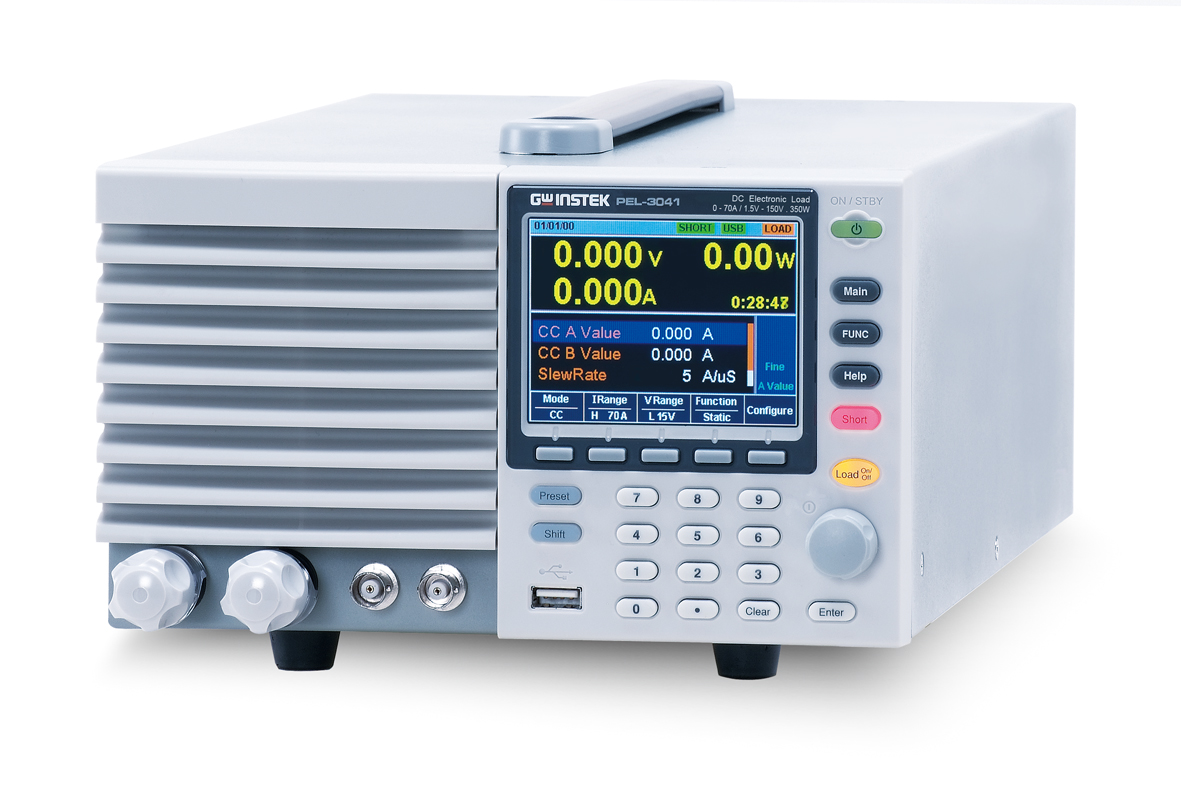

PEL series DC electronic loads

DC electronic loads control current, voltage and resistance. It is utilised to absorb power and its specifications are usually indicated by ampere, voltage, and max power.

DC electronic loads are often categorised as resistant, inductive and capacitive. In the real tests, electronic loads involve complex factors, including dynamic variation, C.V., C.C., C.R., or the control of power.

The GW-Instek DC electric loads are extremely suited to testing server power supplies and SPS (Switching Power Supplies) for commercial and industrial computers, high voltage devices such as the EV & HEV in-vehicle chargers, DC-DC converters or high-voltage batteries and semiconductor designs.

PEL series DC electronic loads

Range features

A high level overview of what this range offers

PEL 3000 series

  • A single-channel programmable DC electronic load with 0.01mA current resolution and the current slew rate reaching 16A/ μs. (PEL-3000H: 0.84A/us)

PEL 2000A series

  • A multi-channel programmable DC electronic load, with a modulation design that intends to assist users to reserve the augmentation capability of future higher power requirements

  • The PEL-2000A series includes two types of mainframes and 4 types of load modules to accommodate users’ requirements in a flexible manner

PEL 303xE

  • A single-channel 300W DC electronic load. Inherited from the PEL-3000 series, PEL-3000E has an easy-to-read LCD panel and user-friendly interface

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelPowerVoltageCurrent

PEL-3000 series

175~9450W

150V or 800V

35~1890A

PEL-2000A series

up to 350W

0-80V or 0-500V

up to 70A

PEL-3031E

300W

0-150V

0-6A or 0-60A

PEL-3032E

300W

0-500V

0-1,5A or 0-15A
