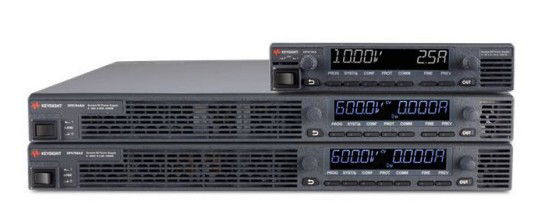

DP5700 series high-density DC power supplies
- Technology
- ATE system power supplies
- Partner
- Keysight
The Keysight DP5700 Series DC power supplies deliver high-density, high-performance power in a compact 1U form factor—ideal for space-constrained labs, ATE systems, and production environments. With 68 single-output models, including 1.5 kW half-rack, 3.4 kW, and 5 kW full-rack units, the DP5700 Series provides stable and precise power output up to 600 V and 500 A. Integrated voltage and current measurements ensure accurate device validation without external instrumentation.
Designed for flexibility and scalability, users can:
-
Parallel up to four 5 kW units to increase current
-
Series-connect two units to boost voltage
-
Configure systems easily without added hardware complexity
Range features
A high level overview of what this range offers
-
High power density in a compact 1U design
-
Built-in voltage and current sensing for accurate measurement
-
Comprehensive overvoltage (OVP) and overcurrent (OCP) protectionFlexible AC input options:
-
100–240 VAC (1.5 kW models)
-
200–240 VAC single- or three-phase
-
380–480 VAC three-phase (3.4 kW & 5 kW models)
-
Standard LAN, USB, and GPIB interfaces
-
Full LXI Class C compliance for ATE integration
-
Scalable architecture for high-power testing applications
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Voltage Range (V) | Current Range (A) | Rated Power (W) | Ripple rms (mV) | Load Regulation V (mV) | Line Regulation V (mV) |
|---|---|---|---|---|---|---|
DP5721A | 0–10 | 0–150 | 1500 | 6 | 3 | 1 |
DP5722A | 0–20 | 0–75 | 1500 | 6 | 4 | 2 |
DP5723A | 0–30 | 0–50 | 1500 | 6 | 5 | 3 |
DP5724A | 0–40 | 0–38 | 1520 | 7 | 6 | 4 |
DP5726A | 0–60 | 0–25 | 1500 | 7 | 8 | 6 |
DP5728A | 0–80 | 0–19 | 1520 | 8 | 10 | 8 |
DP5730A | 0–100 | 0–15 | 1500 | 30 | 12 | 10 |
DP5731A | 0–150 | 0–10 | 1500 | 20 | 17 | 15 |
DP5733A | 0–300 | 0–5 | 1500 | 45 | 32 | 30 |
DP5736A | 0–600 | 0–2.6 | 1560 | 100 | 62 | 60 |
