Smart Bench Essentials Plus
- Technology
- DC power supplies
- Partner
- Keysight

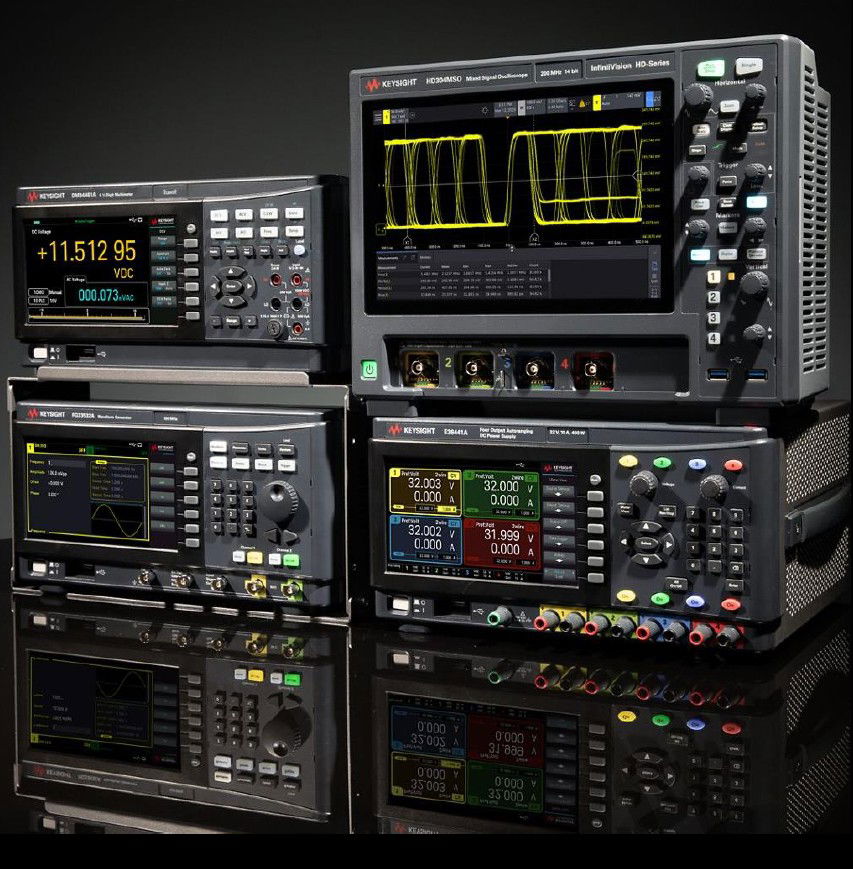

Smart Bench Essentials Plus is an elevated set of everyday instruments — including a DC power supply, a waveform generator, a digital multimeter, and an oscilloscope. Backed by pro-level measurement technology, trusted certifications, and software that streamlines workflows, Smart Bench Essentials Plus goes beyond basic.
The newest addition from Keysight Technologies with enhanced performance to meet the growing demands of general electronics development in consumer, automotive, healthcare, and semiconductor industries. Compared to the original Education products, Smart Bench Essentials Plus offers:
- 10 times more digital multimeter resolution
- 5 times more waveform generator bandwidth
- 4 times more power supply capacity
- 64 times more oscilloscope vertical resolution
For range details, please see the catalogue in the downloads section below.
DM34460 multimeter
6.5 digit. Dual display
- Make accurate, low-noise measurements with Keysight Truevolt technology
- Capture up to 50,000 readings per second
- Log up to 2 million data points with internal memory
FG33530 waveform generator
100MHz, 1 or 2 channels
- Generate true waveform representations with <50 ps jitter
- Achieve under 0.06% total harmonic distortion using Keysight Trueform technology
E36441A power supply
6.5 digit. Dual display
- Reliable and responsive power delivery
- Fast transient response
- Low ripple and noise
- Expandable to 128 V in series
- Expandable to 40 A in parallel
HD3 oscilloscope
100MHz, 1 or 2 channels
- Capture signal details up to 200 MHz or 1 GHz bandwidth
- Exceptional resolution with 14-bit ADC
- Low noise floor for accurate measurements
- Powered by custom ASIC technology
BenchVue software
Intuitive, easy to use
- Configure and control all your Smart Bench Essentials instruments from a single PX
- Store data locally
- Export data in standard formats for easy analysis and reporting
Downloads
for Smart Bench Essentials Plus
What’s in the range?
All the variants in the range and a comparison of what they offer
| Model | Max resolution | Max reading speed | Basic 1-Yr DCV accuracy | Max memory |
|---|---|---|---|---|
DMM34460A | 6.5 digits | 1,000 readings/s | 0.00% | 50,000 readings |
DM34461A | 6.5 digits | 50,000 readings/s | 0.00% | 2,000,000 readings |
| Model | Max bandwidth | Max arbitrary waveform length | Max sample rate | Total harmonic distortion |
|---|---|---|---|---|
FG33531A | 100MHz, 1 ch | 16 MSa/s | 30 MSa/S | < 0.05% typical |
FG33532A | 100MHz, 2 ch | 16 MS/s | 320 MSa/s | < 0.05% typical |
| Model | Power | Max voltage | Max current | Outputs | Interfaces |
|---|---|---|---|---|---|
E36441A | 400W | 4 x 32V | 10A | 4 | LAN, USB |
| Model | Number of models | Bandwidth | Max memory depth | Max waveform update rate |
|---|---|---|---|---|
HD3 series | 2 | 200MHz, 350MHz, 500MHz, 1GHz | 100M points | 1.300.000 wfms/sec |
