710A & 720A bond meter kits
- Technology
- Meters
- Partner
- Tegam / Advanced Energy
The Tegam 710A and 720A bond meter kits set the benchmark for accurate, portable, and rugged ground bond testing in demanding environments. Designed for aviation, military, and industrial applications, these meters ensure reliable measurement of electrical bonding and ground resistance — critical to safety and performance. Whether you’re performing routine maintenance or fault diagnostics in the field, the 710A and 720A provide laboratory-grade precision, even in harsh environments.
Both models come as part of robust, field-ready kits, delivering unmatched ease of use, accuracy, and durability in a compact form.
Range features
A high level overview of what this range offers
-
*High accuracy low resistance measurements Measure from 0.001 mΩ to 2000 mΩ with ±0.2% accuracy, ensuring dependable readings for safety-critical connections.
-
*True 4-wire Kelvin measurement Eliminates lead and contact resistance from readings — ideal for measuring very low resistances with precision.
-
*Rugged, portable design Shock-resistant, weather-sealed enclosures built to MIL-PRF-28800F Class 2 standards for use in extreme environments.
-
*Long battery life with rechargeable options Operates for up to 100 hours on standard AA batteries or via an optional rechargeable battery pack — perfect for fieldwork.
-
*Bright backlit display Easily readable in bright daylight or low-light environments with auto-shutoff functionality.
-
*Data logging and USB interface (720A) The 720A model includes onboard data storage and USB output, enabling easy data transfer and analysis.
-
*Audible alert system Provides pass/fail indication tones — speeding up repetitive testing in production or maintenance workflows.
-

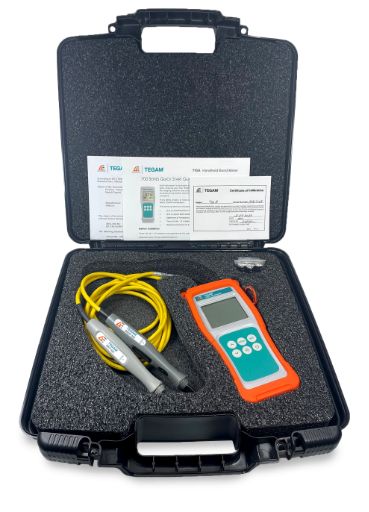

*Complete field-ready kit Includes Kelvin probes, carrying case, user manual, batteries, and calibration certificate — everything you need to get started.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Resistance range | Accuracy | Display | Data logging |
|---|---|---|---|---|
710A | 0.001 mΩ – 2000 mΩ | ±0.2% | Backlit LCD | No |
720A | 0.001 mΩ – 2000 mΩ | ±0.2% | Backlit LCD | Yes |
