Pure signal generation for RF testing

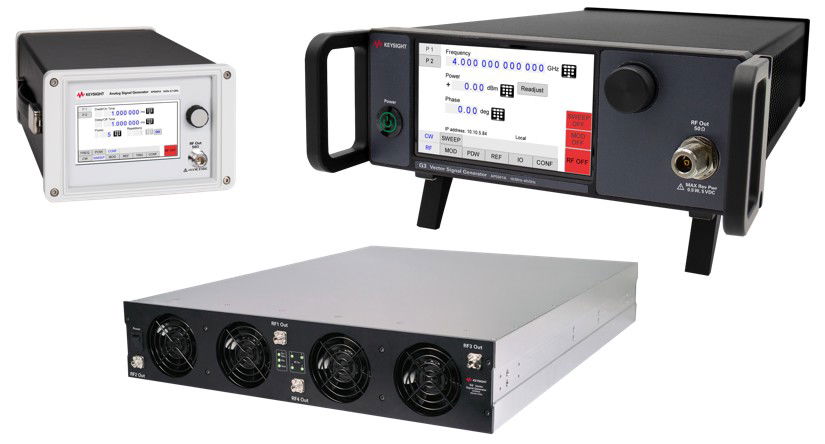

The AP500xA compact and portable RF analog signal generators from Keysight, enable you to characterise, and fully stress test your wireless devices. This range enables you to test devices up to 26 GHz quickly and confidently, with exceptional output power range, low phase noise, and fast switching speed.
The AP504xA and AP5042A single and multi-channel vector signal generators provide you with a combination of performance and versatility in a compact form factor. Leverage the excellent phase noise, spectral purity, fast switching speed, phase coherent multi-channel performance and vector modulation capability of these generators for an effective and cost-efficient tool in your lab. Put these sources to work, testing in application areas such as receiver testing, phased array antenna testing, avionics testing, RADAR & EW signal generation, quantum computing testing, MIMO signal generation, production testing and more.
For range details please see the catalogue in the downloads section below.
Range Features
A high level overview of what this range offers

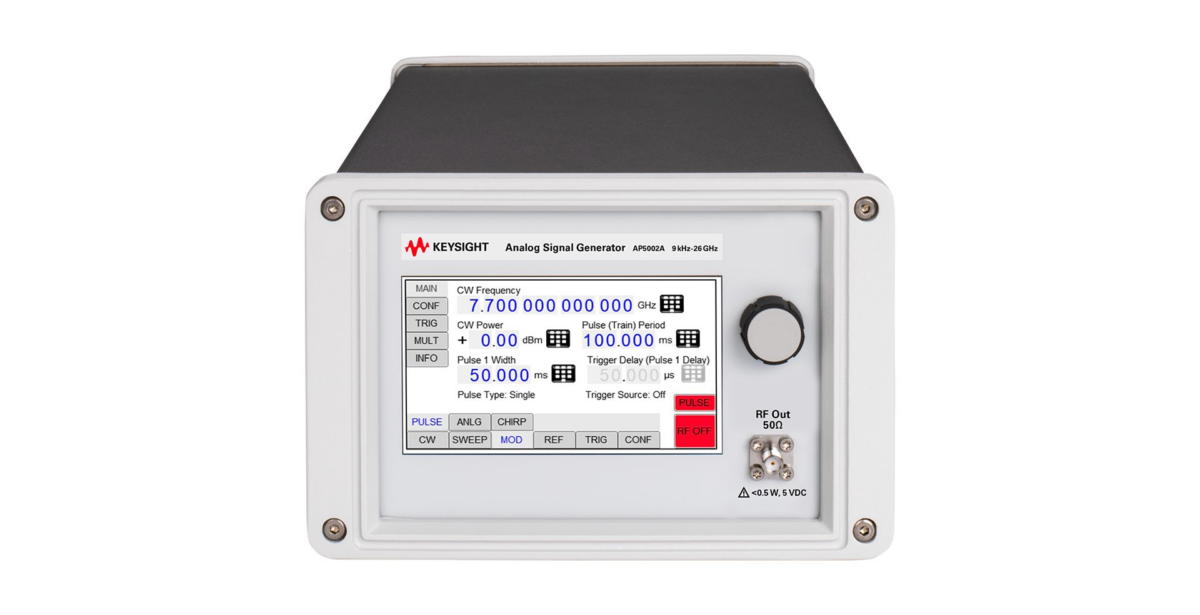

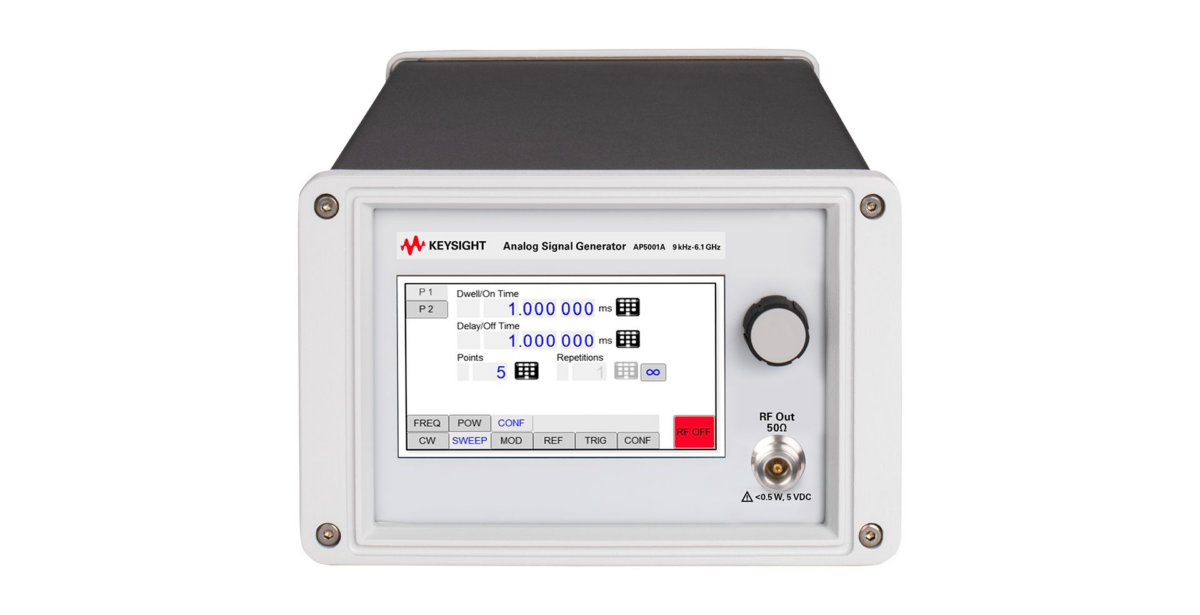

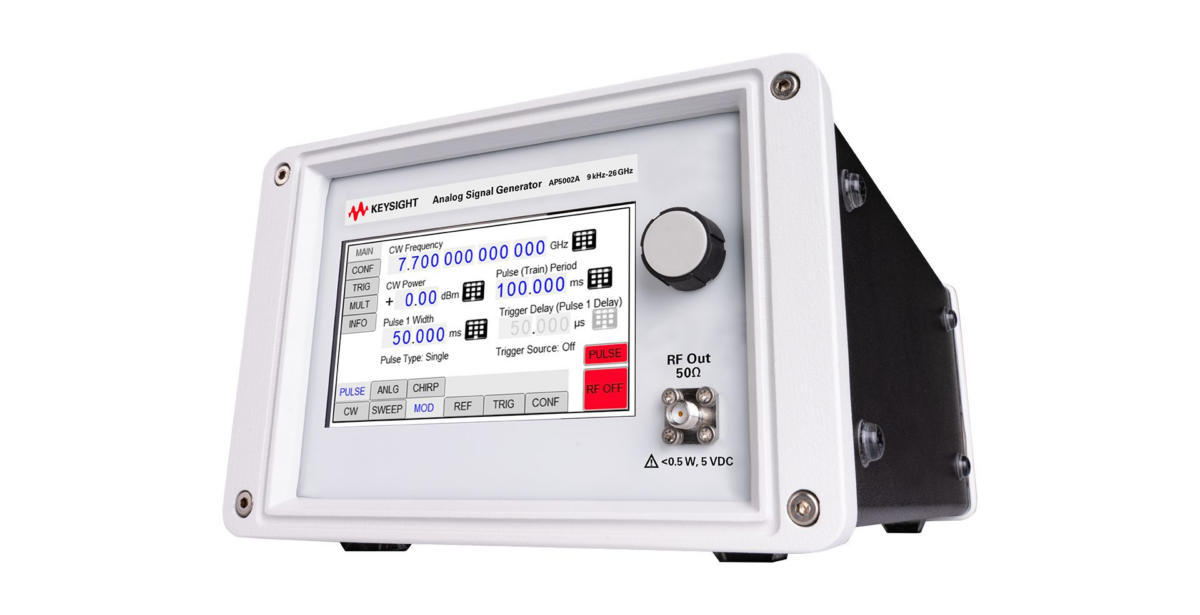

Analogue Signal Generators:
- 9kHz to 26GHz
- Characterise devices thoroughly with up to +23 dBm output power and -130 dBc / Hz phase noise.
- Accelerate testing rapid switching speeds down to 20 μs.
- Generate a stabilised low-phase noise signal with micro-Hz resolution with an oven-controlled crystal oscillator (OCXO).
- Enhance testing with sweep, trigger functions, and user-programmable external reference frequency.
- Upgrade your signal generator to a higher frequency or add more capabilities via a license key.
- Operate easily with optimised user interface, including LCD touch screen and remote desktop software.
Vector Signal Generators:
- 100 kHz to 4, 6, 12, 20, 40 GHz
- Ultra-fast switching: <100 ns within mod BW, as fast as 2.6 µs (4 GHz), 3.1 µs (6 to 20 GHz), 5.9 µs (40 GHz)
- Low phase noise: -142 dBc/Hz at 1 GHz, 10 kHz offset; -113 dBc/Hz at 10 GHz, 10 kHz offset
- Harmonics: < -30 dBc; Non-harmonics: -50 dBc at 10 GHz
- Standard Digital vector modulator: IQ BW 400 MHz (16bit)
- Internal digital baseband generator: Sample Rate up to 500 MHz, 512 MSa IQ memory
- FCP for IQ-data streaming, 125/250 Msa/s
- Ext. analogue I/Q inputs: 50 MHz
- Phase coherent, phase coherent switching
- Multi-device waveform/trigger synchronisation: 6 GHz clock IN/OUT
Downloads
for Compact Signal Generators
Whats in this range?
All the variants in the range and a comparison of what they offer.
| Model | Freq. range | Freq.switching | Narrow pulse width | SSB phase noise (at 1GHz, 20kHz offset) | Max output power |
|---|---|---|---|---|---|
AP5001A | 9kHz – 2.4 or 6.1GHz | 200 μs | 30 ns | -130dBc/Hz | +17dBm |
AP5002A | 9kHz – 12, 20 or 26GHz (30GHz settable) | 300 μs | 100 ns | -130dBc/Hz | +15 dBm |
| Model | Freq. range | Freq.switching | Nr of channels | phase noise | Max output power |
|---|---|---|---|---|---|
AP5041A | 100kHz-40GHz | 500 μs standard As low as 2.6 μs (option UNZ) | 1 | -142 / -113 dBc/Hz (LN1, LN2) | +22 dBm |
AP5042A | 100kHz-40GHz | 500 μs standard As low as 2.6 μs (option UNZ) | 1, 2, 3 or 4 | -142 / -113 dBc/Hz (LN1, LN2) | +22 dBm |
