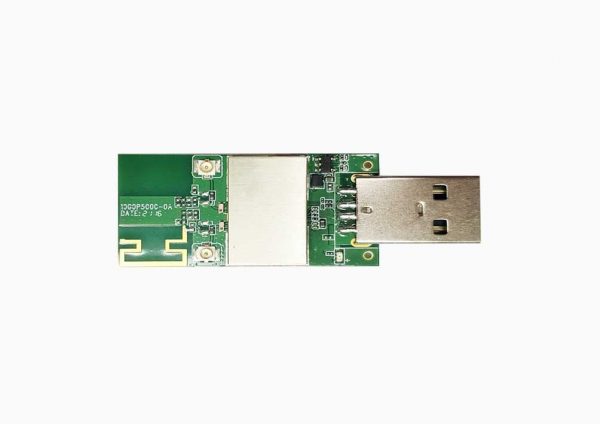

WUBT-239ACN(BT) Wi-Fi 5 & Bluetooth 4.2 USB Module
- Technology
- Wi-Fi modules
- Partner
- SparkLAN
SparkLAN WUBT-239ACN(BT) is a highly integrated single-chip Wireless LAN (WLAN) and Bluetooth (BT) USB module. It supports dual-stream (2×2) 802.11ac solutions with multi-user MIMO (MU-MIMO) technology for high-performance wireless connectivity. This compact module integrates a 2Tx2R WLAN MAC, baseband, and dual-band RF in a single USB form factor.
The WUBT-239ACN(BT) provides a cost-effective solution for machine-to-machine (M2M) connectivity, enabling devices to connect via a single USB port.
Designed for flexibility, it supports various USB input formats and offers options for either an internal printed antenna or an external RF antenna connector to meet different performance requirements. With its low power consumption, robust system performance, and reliable wireless communication, the WUBT-239ACN(BT) is ideal for M2M applications and other embedded wireless solutions.
Range features
A high level overview of what this range offers
- Supports IEEE 802.11ac/abgn dual-band WLAN
- 2Tx2R with MU-MIMO for high throughput
- Integrated WLAN MAC, baseband, and RF
- Built-in Bluetooth functionality
- USB interface for easy integration
- Internal or external antenna options
- Optimised for low power consumption and high reliability
What’s in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11ac/a/b/g/n |
Chipset | Realtek RTL8822CU |
Host Interface | WLAN: USB |
Antenna | 2 x IPEX MHF1 connectors or Printed Ant. |
(ANT0 for WLAN, ANT1 for WLAN+BT) | |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz | |
5.150GHz~5.850GHz |
