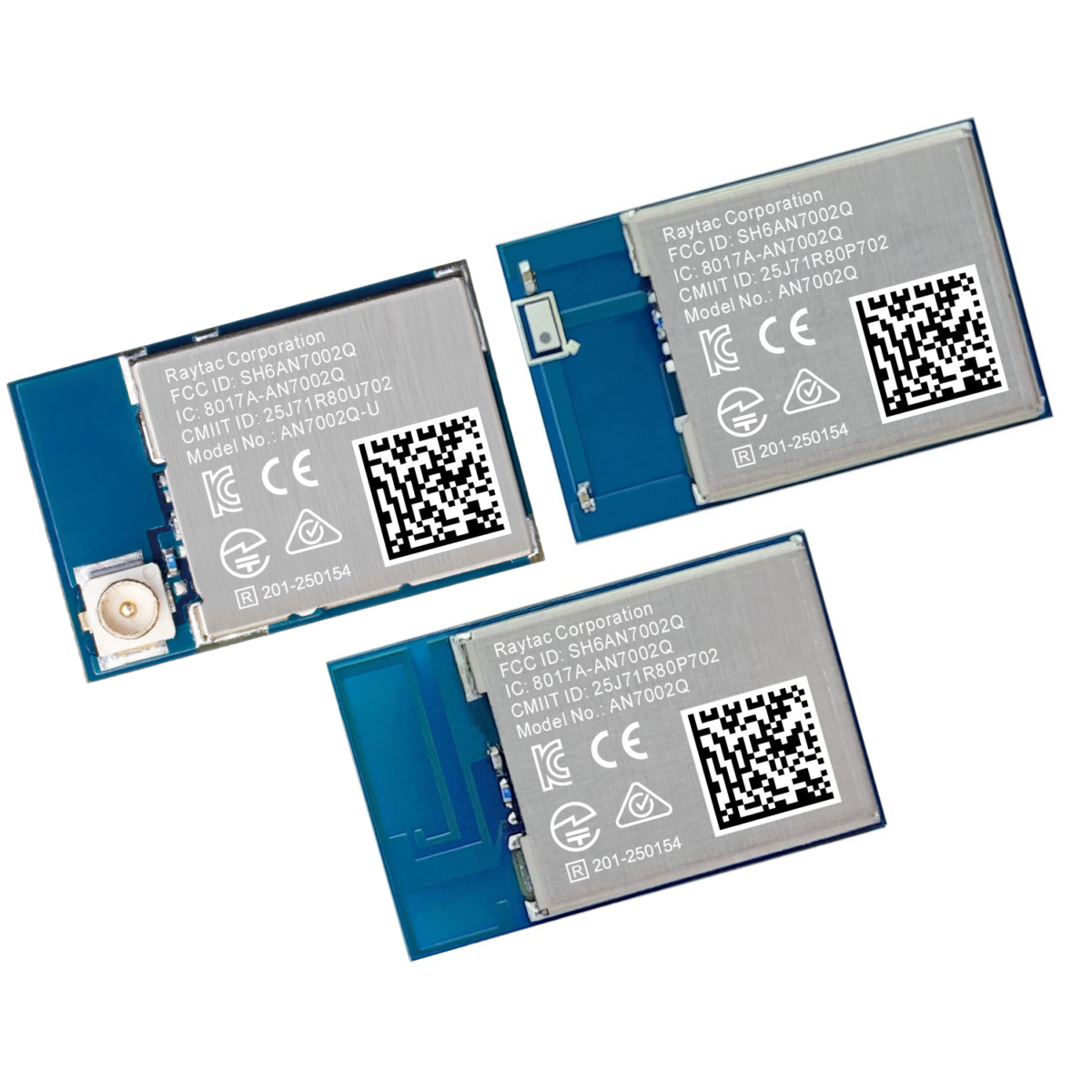

AN7002Q Series, Wi-Fi 6, LGA module; nRF7002 based
- Technology
- Wi-Fi modules
- Partner
- Raytac
The AN7002Q Wi-Fi 6 module series provides an easy way to add high-performance, dual-band wireless networking to embedded systems. Built around a dedicated Wi-Fi 6 companion IC, it operates in both 2.4 GHz and 5 GHz bands and supports 20 MHz channels with single-stream SISO operation. The module targets applications where an existing host processor needs reliable, secure and energy-efficient Wi-Fi connectivity without the complexity of discrete RF design.
It connects to the host through standard SPI or QSPI interfaces, with optional encryption, making integration straightforward for a wide range of microcontrollers and processors. Advanced Wi-Fi 6 features such as Target Wake Time and OFDMA help optimise performance and power usage in dense IoT deployments.
Comprehensive security and quality-of-service capabilities mean the module is equally at home in consumer, commercial and industrial environments. With its small footprint, integrated chip antenna and extensive regulatory approvals, the AN7002Q simplifies global deployment of connected products.
Range features
A high level overview of what this range offers
- Wi-Fi 6 dual-band (2.4 GHz / 5 GHz) – High-performance, robust wireless connectivity in busy RF environments
- 802.11ax with legacy support – Works with modern and older Wi-Fi infrastructure for smooth deployment
- 20 MHz SISO with up to 86 Mbps – Balanced data rate for IoT traffic, firmware updates and telemetry
- Integrated companion IC and RF front end – Minimises RF design effort and speeds time to market
- Target Wake Time and power-save features – Supports low-power, battery-operated designs
- SPI / QSPI host interfaces with optional encryption – Simple, secure connection to a wide range of processors
- 3-/4-wire coexistence interface – Designed to operate smoothly alongside other 2.4 GHz radios
- Compact 10.8 × 17.1 × 2.1 mm module with chip antenna – Saves PCB space and removes the need for an external antenna
- Global radio and environmental compliance – Eases certification and supports worldwide product deployment
- Station, Wi-Fi Direct and Soft AP modes – Flexible use as client, peer-to-peer node or mini access point
What’s in this range?
All the variants in the range and a comparison of what they offer
| Parameter | AN7002Q | AN7002Q-P | AN7002Q-U |
|---|---|---|---|
Wi-Fi standard | Wi-Fi 6 (802.11ax, a/b/g/n/ac) | Wi-Fi 6 (802.11ax, a/b/g/n/ac) | Wi-Fi 6 (802.11ax, a/b/g/n/ac) |
Bands | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
Channel / streams | 20 MHz, 1×1 SISO | 20 MHz, 1×1 SISO | 20 MHz, 1×1 SISO |
Max PHY rate | 86 Mbps (MCS7) | 86 Mbps (MCS7) | 86 Mbps (MCS7) |
Host interface | SPI / QSPI | SPI / QSPI | SPI / QSPI |
Coexistence | 3- / 4-wire coexistence | 3- / 4-wire coexistence | 3- / 4-wire coexistence |
Antenna type | Chip antenna | PCB antenna | u.FL connector (external antenna) |
Dimensions (mm) | 10.8 × 17.1 × 2.1 | 10.8 × 17.1 × 2.1 | 10.8 × 16.4 × 2.1 |
Certifications / env | Global radio + RoHS, REACH, RED | Global radio + RoHS, REACH, RED | Global radio + RoHS, REACH, RED |
