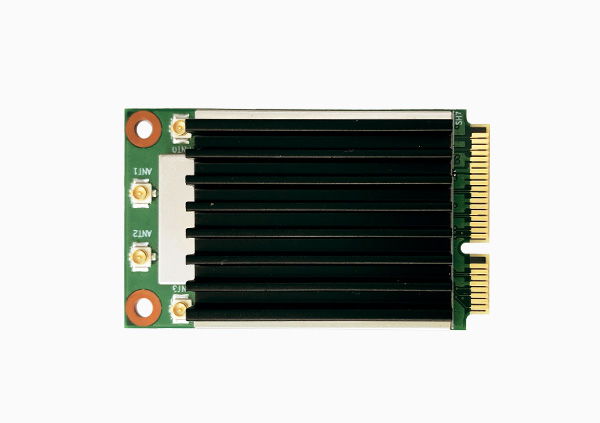

The SparkLAN WPEQ-405AX is SparkLAN’s first Qualcomm-based Wi-Fi 6 (802.11ax) AP module, built on the QCN9074 chipset. It’s an enterprise-class solution supporting 4×4 MU-MIMO (4T4R) on the 5 GHz band with 160 MHz channels, reaching theoretical speeds up to 4.8 Gbps.
Unlike the typical Qualcomm reference design (PN02.1), the WPEQ-405AX shrinks the size to a full-size Mini PCIe form factor (50 mm × 30 mm) at 3.3 V, providing broader compatibility with existing platforms.
Supporting both AP and STA modes with 4 spatial streams, it’s ideal for high-performance applications like enterprise APs, UTM, public and transport hotspots, and industrial-grade access points with 4096-QAM and OFDMA for efficient data handling.
Range features
A high level overview of what this range offers
- Qualcomm QCN9074 Wi-Fi 6 (802.11ax)
- 5 GHz single band, 4×4 MU-MIMO
- Up to 4.8 Gbps, 160 MHz, 4096-QAM, OFDMA
- Mini PCIe full-size (50 × 30 mm), 3.3 V
- AP/STA modes for enterprise and industrial use
What’s in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11ax/ac/a/n |
Chipset | Qualcomm Atheros QCN9074 |
Host interface | WLAN : PCIe |
Antenna | 4 x IPEX MHF1 connectors |
Operating frequency | 802.11ax/ac/a/n ISM Band |
5.150GHz~5.850GHz |
