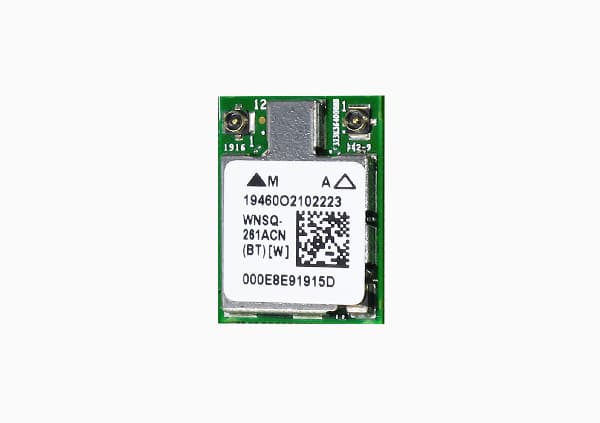

WNSQ-261ACN(BT) Wi-Fi 4 M.2 Module
- Technology
- Wi-Fi and Bluetooth modules
- Partner
- SparkLAN
The WNSQ-261ACN(BT) is a high-performance 802.11ac/a/b/g/n dual-band Wi-Fi combo module in an M.2 LGA Type 1216 form factor, powered by the Qualcomm Atheros QCA6174A-5 chipset. Supporting both 2.4GHz and 5GHz bands, this compact module delivers robust wireless performance with speeds of up to 300 Mbps on 802.11n networks and 867 Mbps on 802.11ac (Wi-Fi 5) networks.
In addition to high-speed Wi-Fi connectivity, the module also integrates Bluetooth 4.2, enabling seamless wireless peripheral connections and low-energy communication.
Designed for enterprise and high-throughput applications, the WNSQ-261ACN(BT) is ideal for next-generation networking solutions requiring reliable and secure wireless connectivity. It supports advanced wireless security protocols, including WEP, WPA, WPA2, WPS, and 802.1x, ensuring data integrity and protection against unauthorised access.
Range features
A high level overview of what this range offers
Dual-Band Wi-Fi 5 (802.11ac/a/b/g/n)
- Supports both 2.4GHz and 5GHz bands
- Up to 867 Mbps on 5GHz (802.11ac)
- Up to 300 Mbps on 2.4GHz (802.11n)
Compact M.2 LGA Type 1216 Form Factor
- Space-saving design ideal for embedded systems and mobile platforms
Based on Qualcomm Atheros QCA6174A-5 Chipset
- Proven performance and compatibility
Integrated Bluetooth 4.2
- Supports dual-mode (Classic + BLE)
- Enables low-power, short-range wireless communication
Advanced Wireless Security
- Supports WEP, WPA, WPA2, WPS, and 802.1x authentication
- Ensures secure data transmission and device protection
Optimised for Enterprise and High-Throughput Applications
- Ideal for IoT, industrial, embedded, and commercial devices
Operating System Support
- Compatible with major platforms (Linux, Windows*)
Low Power Consumption
- Energy-efficient design suitable for battery-powered devices
What’s in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11ac/a/b/g/n |
Chipset | Qualcomm Atheros QCA6174A-5 |
Host interface | WLAN: PCIe |
Antenna | 2 x IPEX MHF4 connectors |
(MAIN for WLAN, AUX for WLAN/ BT) | |
Operating frequency | 802.11 ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz | |
5.150GHz~5.850GHz |
