WNFT-238AX(BT) Wi-Fi 6 & Bluetooth 5.2 M.2 Module
- Technology
- Wi-Fi and Bluetooth modules
- Partner
- SparkLAN

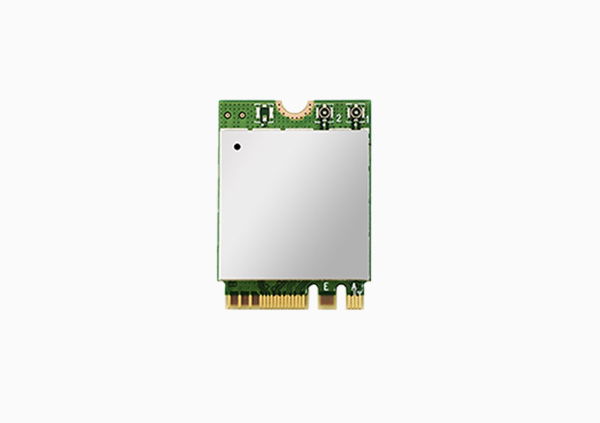

The SparkLAN WNFT-238AX(BT) is SparkLAN’s first Realtek-based Wi-Fi 6 (802.11ax) M.2 module. Powered by the latest Realtek combo chip, it supports full IEEE 802.11 ax/ac/a/b/g/n standards with 2×2 MU-MIMO (2T2R). Its compact M.2 A/E Key 2230 form factor fits any platform with a pre-integrated M.2 slot, requiring no extra design effort.
It runs on Windows 11, Linux, and Android, supporting both x86 and ARM platforms*. The module mainly supports STA mode, making it ideal for digital signage, POS, tablets, laptops, and other consumer or commercial devices that need high-speed wireless with low demand for AP mode and wide operating temperature tolerance.
Range features
A high level overview of what this range offers
- Wi-Fi 6 (802.11ax) with backward compatibility (802.11ac/a/b/g/n)
- Powered by Realtek combo chip
- 2×2 MU-MIMO (2T2R)
- M.2 A/E Key 2230 form factor
- Supports Windows 11, Linux, and Android
- Compatible with x86 and ARM platforms*
- STA mode operation
- Suitable for digital signage, POS, tablets, laptops, and consumer/commercial media devices
Whats in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11ax/ac/a/b/g/n |
Chipset | Realtek RTL8852BE |
Host interface | WLAN : PCIe |
Antenna | 2 x IPEX MHF4 connectors |
Operating Frequency | 802.11ax/ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz | |
5.150GHz~5.850GHz |
