The range brings together the finest Wi-Fi 6 technology from Qualcomm and Realtek to enhance the Wi-Fi connectivity performance.

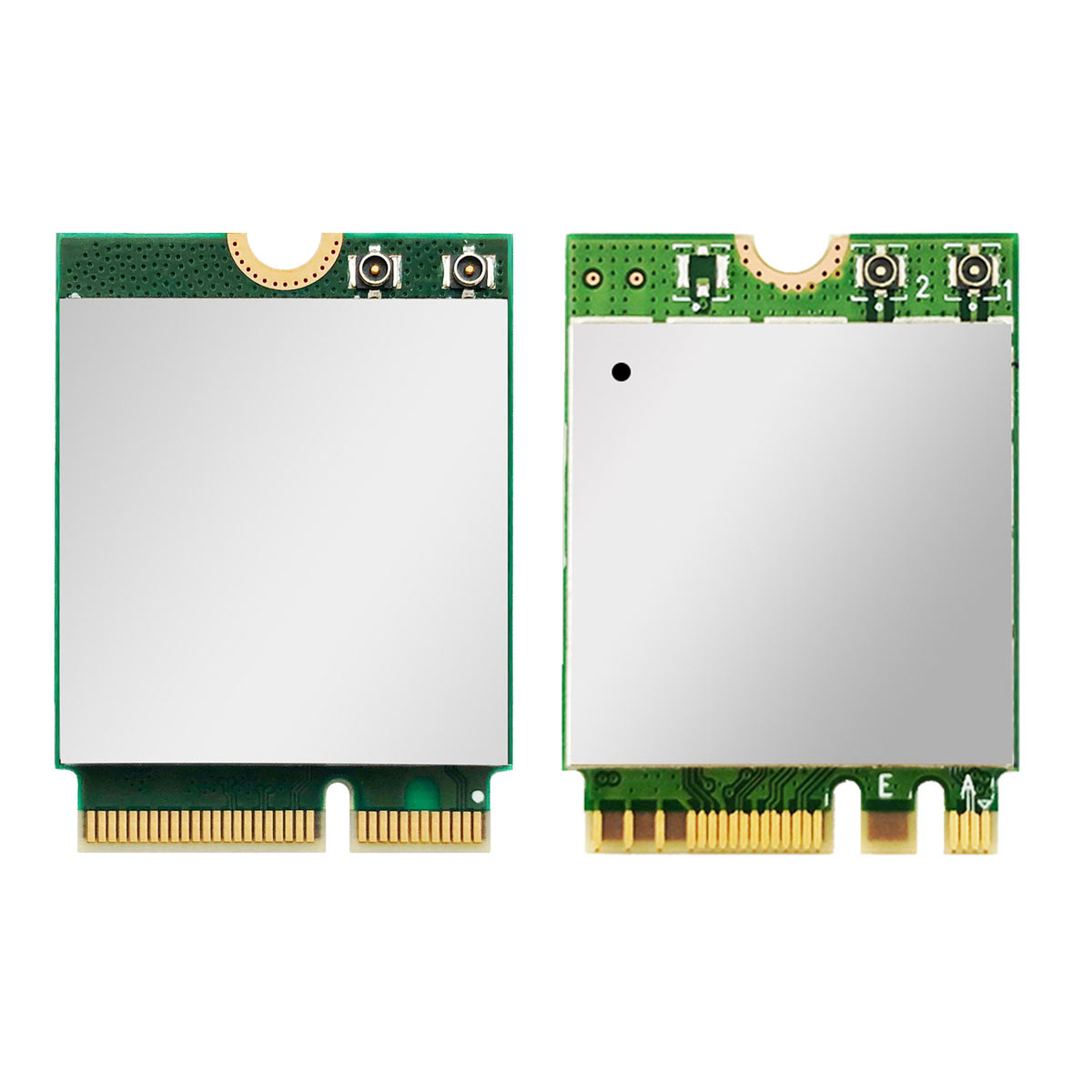

The portfolio provides WNFT-238AX (BT) which is one of the most cost- effective Wi-Fi 6 dual band solutions with BT5.2, with the module supporting Windows & Linux types of operating systems;to Qualcomm based WNFQ-268AXI (BT) that supports Wi-Fi 6 & 6E with BT5.2, dual concurrent capability in one single module with cutting-edge high temperature handling specifications.
WNFQ-268AXI(BT) can also support software based Soft AP for applications that require a versatile design.Both solutions are packed with multiple country certifications (including 6E supported countries) and launched with samples that are ready to deliver for testing.

What’s in this range?
All the variants in the range and a comparison of what they offer
Model | Chipset Vendor | Technology |
| Form Factor | Interface | Operating System |
---|---|---|---|---|---|---|
WNFT-238AX(BT) | Realtek 8852BE | Wi-Fi 6 Dual Band +BT 5.2 Combo | 2 x IPEX MHF4 connector, 2T2R | M.2 (A-E KEY) 2230 | PCIe: WLAN; USB: BT | Windows, Linux (Open Source) |
WNFQ-268AXI(BT) | Qualcomm 6856 | 802.11ax/ac/a/b/g/n Industrial Capable Tri-band Wi-Fi +BT 5.2 Combo | 2 x IPEX MHF4 connector, 2T2R | M.2 (E Key) 2230 | PCIe: WLAN; USB: BT | Windows, Linux (Open Source) |
WNFQ-290BE(BT) | Qualcomm QCC2XXX | Wi-Fi 7 Tri-band 2×2 160 MHz Wi-Fi + BT 5.3 Combo | I-PEX MHF4 connector | M.2 2230 | PCIe: WLAN; USB | Windows, Linux (Open Source) |
WNFT-28XBE(BT) | Realtek 8922AE | 802.11be Tri-band 2×2 320MHz + BT 5.4 Combo | I-PEX MHF4 connector | M.2 2230 | PCIe (Wi-Fi), USB: BT | Windows, Linux (Open Source) |
WNFS-267AXI(BT) | Synaptics | 802.11ax Tri-band 2×2 Wi-Fi + BT 5.3 | I-PEX MHF4 connector | M.2 2230 | WLAN: SDIO 3.0 / 2.0 | Windows, Linux (Open Source) |
