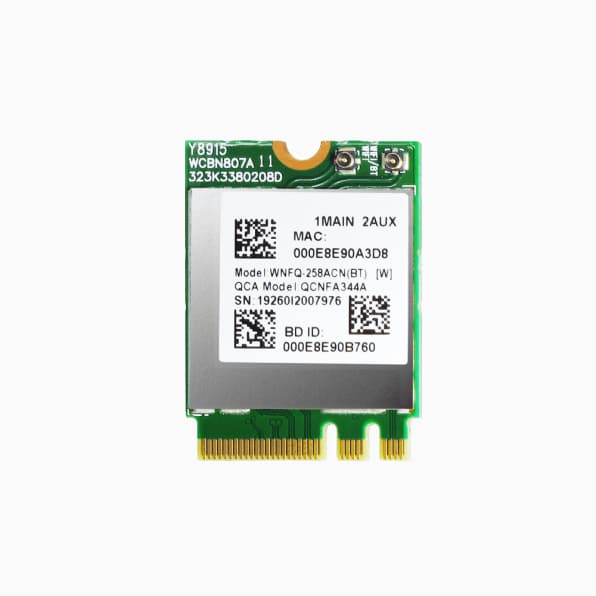

WNFQ-258ACN(BT) Wi-Fi 5 & Bluetooth 4.2 M.2 Module
- Technology
- Wi-Fi and Bluetooth modules
- Partner
- SparkLAN
The SparkLAN WNFQ-258ACN(BT) is a dual-band Wi-Fi 5 (802.11ac/a/b/g/n) M.2 2230 module based on the Qualcomm Atheros QCA6174A chipset. It supports 2.4 GHz and 5 GHz bands with speeds up to 300 Mbps (802.11n) and 867 Mbps (802.11ac).
Designed for high-throughput enterprise networking, it also offers advanced security features including WEP, WPA, WPA2, WPA3, WPS, and 802.1x for safe and reliable wireless connections.
Range features
A high level overview of what this range offers
- Wi-Fi 5 (802.11ac) dual-band: 2.4 GHz & 5 GHz
- Qualcomm Atheros QCA6174A chipset
- Up to 867 Mbps (AC), 300 Mbps (N)
- M.2 2230 slot (E-Key)
- Advanced security: WEP, WPA/WPA2/WPA3, WPS, 802.1x
- Ideal for enterprise networking
Whats in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11ac/a/b/g/n |
Chipset | Qualcomm Atheros QCA6174A-5 |
Host interface | WLAN : PCIe |
Antenna | 2 x IPEX MHF4 connectors |
(MAIN for WLAN, AUX for WLAN/ BT) | |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz | |
5.150GHz~5.850GHz |
