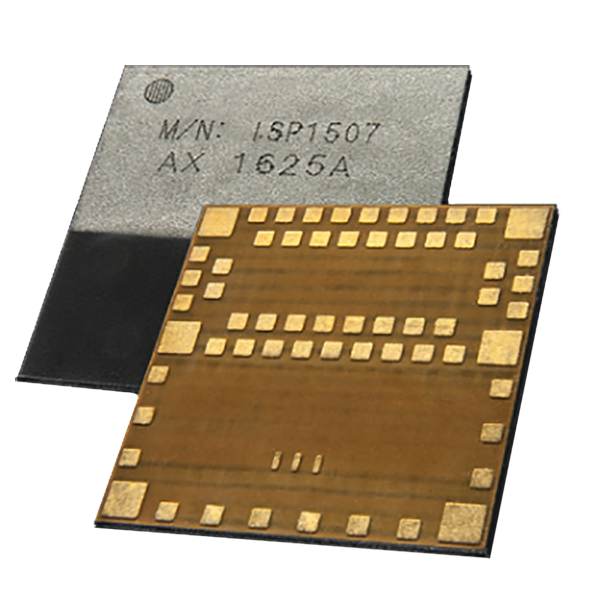

iSP15 Series – Bluetooth 5.0 Modules

A compact, high performance BT5 multiprotocol module suitable for BLE/ ANT+/ NFC applications with an MCU and built-in antenna.

The ISP15 series provide huge computing capabilities coupled with a best-in-class battery life. With power consumption 20-50% lower than previous modules, this Bluetooth Low Energy / BLE module is a ready to use solution ideally suited to most IOT (Internet of Things) applications.

Fully qualified BLE stacks for nRF52 are implemented in the S112/S113/S132 SoftDevices which can be freely downloaded.

iSP15 Series – Bluetooth 5.0 Modules

Range features

A high level overview of what this range offers

  • Frequency ranges: 2.4 MHz
  • 8.0 x 8.0 x 1.0mm package
  • Single-mode Bluetooth 5 stack
  • ANT+ stack available
  • 2.4GHz low energy RF transceiver
  • 32-bit ARM Cortex M4 CP\U
  • Fully integrated RF matching and antenna
  • Integrated radio 32 MHz & Synchro 32 kHZ crystal clocks
  • DC-DC converter with complete loading circuit
  • Pin compatibility with full iSP15/ iSP18/ iSP19
  • Many analog and digital IOs including ADC, SPI, UART, PDM, I2C

Downloads

for iSP15 Series – Bluetooth 5.0 Modules

pdf
Acal_BFi_IoT_solutions_brochure_8.pdf
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModuleISP1507-AXISP1507-AL

512 kB Flash & 64 kB SRAM

192 kB Flash & 24 kB SRAM

30 GPIOs

13 GPIOs

NFC-A tag for OOB pairing

No NFC

M4F floating point processor
