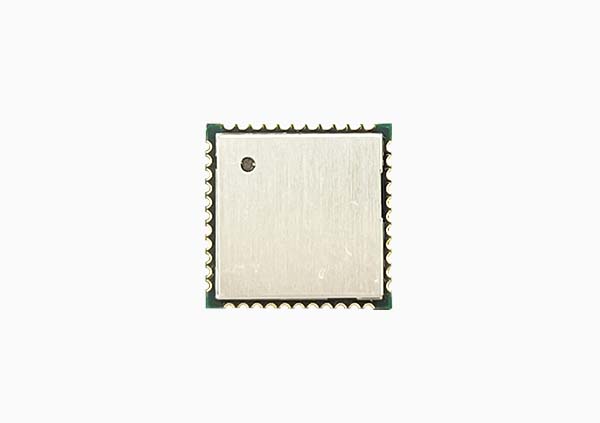

AP6256 Wi-Fi 5 & Bluetooth 5.2 SiP Module
- Technology
- Wi-Fi and Bluetooth modules
- Partner
- SparkLAN
AP6256 is an 802.11ac/a/b/g/n dual-band 1T1R Wi-Fi combo SiP module (Wi-Fi 5). Supporting the SISO standard, it efficiently connects to various vendors’ 1×1 access points and achieves speeds up to 433.3 Mbps. The module features an SDIO interface for Wi-Fi and a UART/PCM interface for Bluetooth, providing a compact, integrated solution for high-performance wireless connectivity. This module is ideal for tablets, OTT boxes, IP cameras, 4K TVs, and portable devices.
Range features
A high level overview of what this range offers
- Supports IEEE 802.11ac/a/b/g/n (Wi-Fi 5) standards
- Dual-band 1T1R SISO design
- Up to 433.3 Mbps data rate
- SDIO interface for Wi-Fi connectivity
- UART/PCM interface for Bluetooth integration
- Compact SiP module for easy integration
- Compatible with various 1×1 access points
- Ideal for tablets, OTT boxes, IP cameras, 4K TVs, and portable devices
What’s in the range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Wi-Fi | IEEE 802.11 ac/a/b/g/n 1T1R Wi-Fi Combo Module |
Chipset | Synaptics |
Host interface | WiFi: SDIO 3.0/2.0 |
RADIO | |
Antenna | External |
Operating frequency | 2.4GHz ISM Band |
2.400GHz~2.4835GHz | |
5GHz UNII Band | |
5.150GHz~5.850GHz | |
Bluetooth | |
2.402GHz ~ 2.480GHz |
