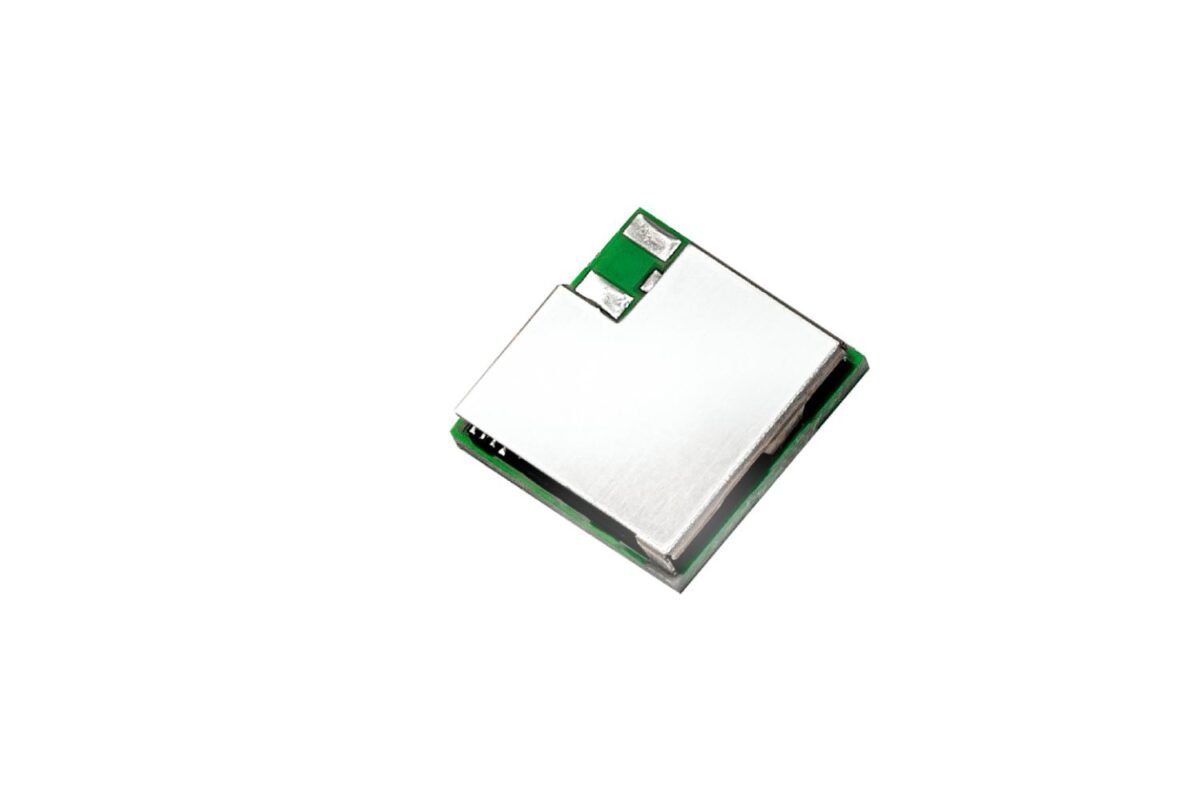

EMB-LR1276S LoRaWAN 868MHz LGA module

Technology
LoRa modules
Partner
Embit

The EMB-LR1276S is a low-cost, ultra-compact wireless module (11.5 × 11.5 × 2 mm) designed to easily integrate LoRa®/LoRaWAN® long-range connectivity into existing products. It supports output power up to +18 dBm for US use or +14 dBm for EU, with high sensitivity down to –136 dBm and extremely low power consumption (≤1 μA in sleep mode).

The module features an embedded IEEE EUI-64 address and includes the Microchip ATECC608A crypto unit for secure communication. It comes preloaded with a LoRa®/LoRaWAN® stack for quick integration and supports AT-like commands via the EBI-LoRa protocol over UART. As an open platform, it also allows for custom firmware development.

The EMB-LR1276S is available in two versions: the EMB-LR1276S/PC with a pad connector, and the EMB-LR1276S/UL with a micro U.FL connector for external antennas. An evaluation kit (EMB-LR1276S-EVK) is recommended for users developing custom firmware.

EMB-LR1276S LoRaWAN 868MHz LGA module

Range features

An overview of what’s in the range

High output power

  • Up to +18 dBm (~80 mW) for US regions
  • Up to +14 dBm (~25 mW) for EU compliance

Exceptional receiver sensitivity

  • Down to –136 dBm, enabling long-range communication

Ultra-low power consumption

  • ≤1 μA in eXtreme Low Power (XLP) sleep mode

Integrated unique identifier

  • Embedded IEEE EUI-64 address (module: EMB-LR1276S)

Secure communication

  • On-board Crypto Unit (Microchip ATECC608A) for data protection

Flexible & open platform

  • Ideal for custom development and integration

Compact form factor

  • Only 11.5 x 11.5 x 2 mm, perfect for space-constrained applications

What’s in this range?

All the variants in the range and a comparison of what they offer

CategorySpecification

Based on

Microchip SAMR34 SiP

Program memory

256 KB

RAM memory

32 KB

Output power (MAX)

up to +14dBm

Sensibility

-136 dBm

AES software encryption

Available

Form factor

11.5 x 11.5 x 2 mm

Consumption

(sleep) 1 µA / 3 µA (with a RTC clock running)

Supply voltage

3.3 V

Part number

EMB-LR1276S
