EMB-FEM2GW-O-2G4 LoRaWAN 2.4MHz Gateway

Technology
LoRa modules
Partner
Embit

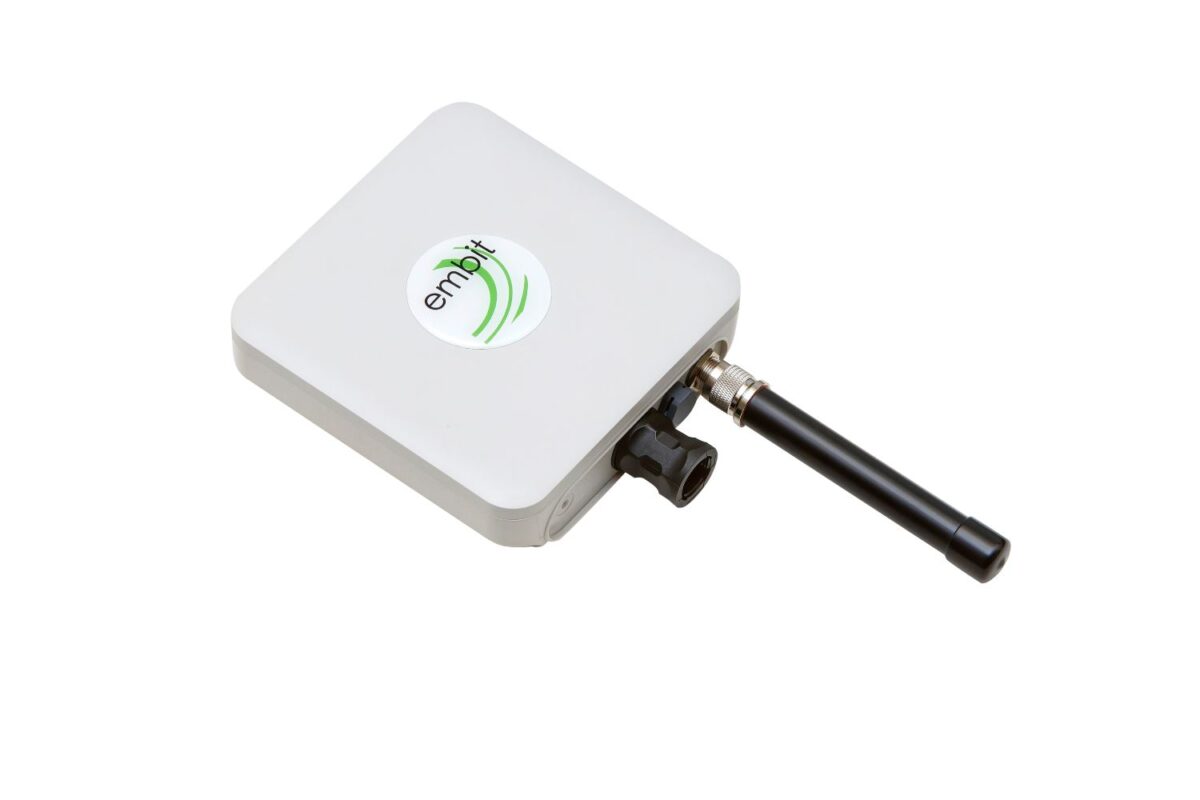

EMB-Fem2GW-O-2G4 is a rugged outdoor LoRa® 2.4GHz gateway designed for IoT and M2M deployments in smart city and smart home environments. Based on the EMB-LR1280-mPCIe-4x board with SX1280 radio, it supports 3 receive and 1 transmit channel, providing long-range coverage of up to 10 km (rural) and 1 km (urban).

It supports Ethernet and 4G connectivity, with modular SIM-based 4G card replacement per region. A web interface, GPS support, and Linux OS with full root access ensure flexibility and global deployability. Operating on the global 2.4GHz ISM band, the gateway offers interference resilience (e.g., against Wi-Fi/Bluetooth) and no duty cycle restrictions, enabling continuous transmission.

EMB-FEM2GW-O-2G4 LoRaWAN 2.4MHz Gateway
IntroFeaturesSpecificationsContact

Range features

A high level over view of what this range offers

  • Outdoor LoRa® 2.4GHz gateway, Semtech-compliant
  • SX1280 radio: 3 RX and 1 TX channels
  • Global 2.4GHz ISM band (no duty cycle limits)
  • Up to 10 km range (rural), 1 km (urban), strong indoor performance
  • High resistance to Wi-Fi and Bluetooth interference
  • Ethernet and 4G connectivity (modular, region-adaptable)
  • Integrated GPS for device geolocation
  • Web interface for configuration and management
  • Customisable Linux OS with full root access
  • Powered via PoE (802.3af) or 12/24 VDC
  • Robust Embit RF design for harsh environments

What’s in this range?

All the variants in the range and a comparison of what they offer

CategorySpecification

Processor

MCU Broadcom BCM2837B0, Cortex – A53 (ARMv8) 64-bit SoC @ 1.2 GHz

RAM memory

RAM 1 GB LPDDR2 SDRAM

Flash memory

8 GB Emmc

LAN connection

RJ 45 10/100/1000

LoRa® Connection

EMB-LR1280-mPCIe-4x; 3 LoRa® 2.4 GHz Rx channels, 1 LoRa® 2.4 GHz Tx channel

Connectivity

GPS – 3G/LTE

Ports

Ethernet 10/100/1000 N-Type Antenna Connector

Operating temperature

-40°C to +85°C

Sensibility

– 129 dBm @ SF 12 BW 812.5 kHz

OS

Embedded Linux

Power supply

IEEE 802.3af/at PoE

Dimensionsions

L:165 mm W:165 mm H:53 mm

Contact us

To request further information and availability please feel free to contact us right away.Or just fill out our contact form for a member of the sales team to respond to you.

Acal BFi UK

JavaScript aktivieren+44 1189 788 878
Mandatory field: please enter your phone number.

In submitting this enquiry form you confirm you have read and agree to our privacy policy .

There was an error while sending the form. Please try again.
