SX1236 Transceiver, (G)FSK, (G)MSK, OOK, +20dBm, 300kbps, QFN-28

Technology
ISM proprietary radios and SoCs
Partner
Semtech (formerly Sierra Wireless)

The SX1236 is a fully integrated ISM band transceiver that supports bi-band operation in most licensed sub-GHz bands with minimal external components. It combines a high link budget with low current consumption in all operating modes.

A 143 dB link budget is achieved through a low-noise CMOS receiver and up to +20 dBm transmit output power. Built-in power amplifiers can operate either fully regulated for consistent RF performance or directly from the supply for maximum efficiency.

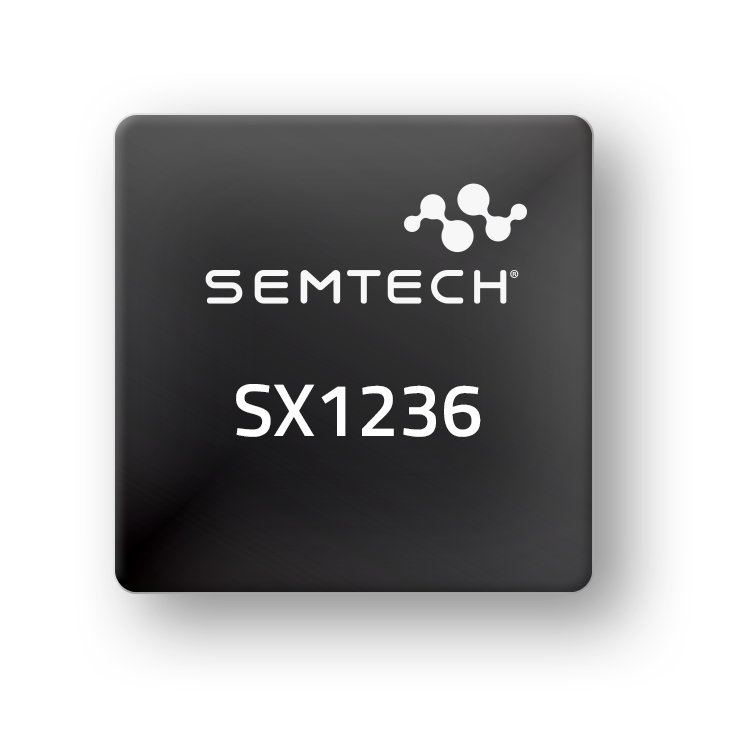

SX1236 Transceiver, (G)FSK, (G)MSK, OOK, +20dBm, 300kbps, QFN-28
IntroFeaturesDownloadsContact

Range features

A high level overview of what this range offers

  • Maximum link budget: 143 dB
  • Constant RF output: +20 dBm (100 mW) vs. supply voltage
  • High-efficiency power amplifier: +14 dBm
  • Programmable bit rate: up to 300 kbps
  • High sensitivity: down to -123 dBm
  • Robust front end: IIP3 = -11 dBm
  • Excellent blocking immunity
  • Low RX current: 10.8 mA; 200 nA register retention
  • Fully integrated synthesizer with 61 Hz resolution
  • Supports FSK, GFSK, MSK, GMSK, and OOK modulation
  • Built-in bit synchronizer for clock recovery
  • Preamble detection
  • Dynamic range RSSI: 127 dB
  • Ultra-fast AFC (Automatic Frequency Control)
  • Packet engine up to 256 bytes with CRC
  • Built-in temperature sensor and low battery indicator

Downloads

for SX1236 Transceiver, (G)FSK, (G)MSK, OOK, +20dBm, 300kbps, QFN-28

pdf
SX1236 – 137 MHz to 1020 MHz Low Power Bi-Band Transceiver
Download
