X300 Wi-Fi Gateway
- Technology
- Routers, gateways, modems and switches
- Partner
- Lantronix

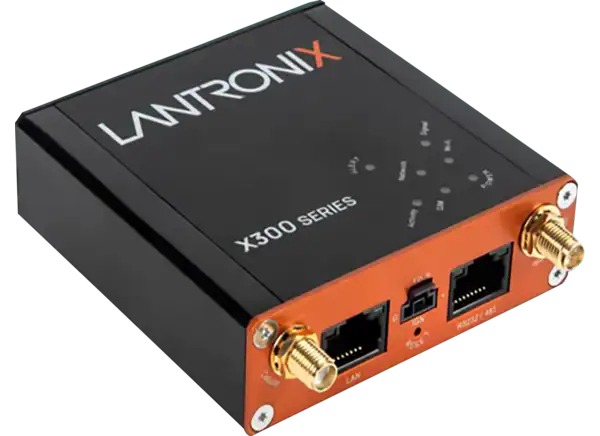

The Lantronix X300 is a compact (79 x 79 mm), industrial-grade IoT gateway ideal for mission-critical deployments. It combines LTE M or Cat-1 cellular, Wi-Fi, Bluetooth/BLE, Ethernet, and serial interfaces in one rugged device. Included are Percepxion™ cloud management, embedded SIM with data plans, and expert support through LEVEL Services.
Security is ensured with InfiniShield™, featuring a secure element, secure boot, and encrypted communications. Powered by the Linux-based ePACK software suite, it supports edge processing and application customisation. Optional BLE sensors enable monitoring of temperature, humidity, motion, and location.
Range features
An overview of what’s in the range
- Compact, industrial-grade design
- Versatile interfaces (cellular, Wi-Fi, BLE, Ethernet, serial)
- Advanced cybersecurity with InfiniShield™
- Percepxion™ device management
- Built-in connectivity services (SIM & data)
- Expert support & limited lifetime warranty
- Fast hardware replacement
Downloads
for X300 Wi-Fi Gateway
What’s in this range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Cellular | LTE Cat M1 – X303 with 2G fallback mode LTE Cat1 – X304 with 3G or 2G fallback mode options Wi-Fi & Bluetooth operation |
Wi-Fi & Bluetooth operation | Wi-Fi 5 and Bluetooth/BLE 5.0; via one (X303) or two (X300, X304) RP-SMA antenna connector |
Ethernet | One LAN port; 10/100BASE-T; via a RJ-45 header fitted with two LEDs |
Serial communication | RS-232 6-signal (Rx, Tx, RTS, CTS, either DSR or DCD, DTR) implementation; via an RJ-45 header RS-485 half or full duplex, via RJ-45 header Switchable by software |
SIM | Lantronix Connectivity Services embedded MFF SIM; auxiliary mini-SIM holder |
Location services | Qualcomm® IZat™ gen. 8C gps One; via a dedicated SMA antenna connector (X304 only) |
Temperature & humidity ranges | Operating: -30°C ~ +70°C; up to 95% RH Storage: -40°C ~ +85°C; up to 95% RH |
Power | Input voltage: 9 ~ 30 V DC 3-pin Nano-Fit™ header Digital Input (Ignition): One (1) digital input, on the second pin of the 3-pin header Input: 0 ~ 2.5 V DC => ZERO; 3 ~ 50 V DC => ONE |
