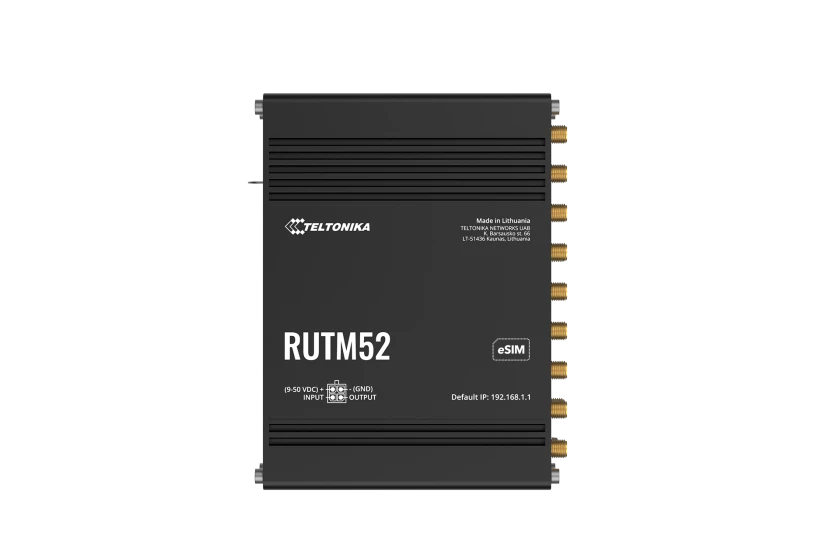

RUTM52 Dual 5G Sub 6 GHz Router
- Technology
- Cellular modems and gateways
- Partner
- Teltonika Networks
The RUTM52 5G router features dual 5G modems, multi-WAN support, LTE Cat 20 fallback, dual SIM with eSIM, and compatibility with SA/NSA 5G networks. It offers load balancing, Wi-Fi 5, five Gigabit Ethernet ports, and runs RutOS with industrial protocols and various VPN options. The router is also compatible with RMS for secure remote management.
Range features
An overview of what’s in the range
- Dual 5G modems – Ensures high-speed, uninterrupted connectivity with redundancy
- Multi-WAN support – Provides failover, load balancing, and traffic management
- LTE Cat 20 fallback – Maintains connectivity even in areas with limited 5G coverage
- Dual SIM with eSIM – Enhances flexibility with multiple carrier options and remote provisioning
- SA/NSA 5G compatibility – Supports both standalone and non-standalone 5G networks for future-proofing
- Wi-Fi 5 – Delivers high-speed wireless networking for connected devices
- Five Gigabit ethernet ports – Enables reliable wired connections for critical applications
- RutOS with industrial protocols – Supports Modbus, MQTT, and other protocols for IoT and industrial use
- Multiple VPN options – Ensures secure remote access with OpenVPN, IPsec, WireGuard, etc.
- RMS compatibility – Allows for secure and efficient remote monitoring and management
Downloads
for RUTM52 Dual 5G Sub 6 GHz Router
| Category | Specification |
|---|---|
Mobile module | 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO) 900/600Mbps UL (2×2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4×4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL |
3GPP Release | Release 16 |
Operating system | RutOS (OpenWrt based Linux OS) |
Input | 1 x Configurable digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high |
Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
Connector | 4-pin industrial DC power socket |
Power consumption | Idle: < 5 W, Max: < 13 W |
Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
Weight | 560 g |
Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating temperature | -40 °C to 60 °C |
