RUTX50 5G industrial router
- Technology
- Cellular modems and gateways
- Partner
- Teltonika Networks

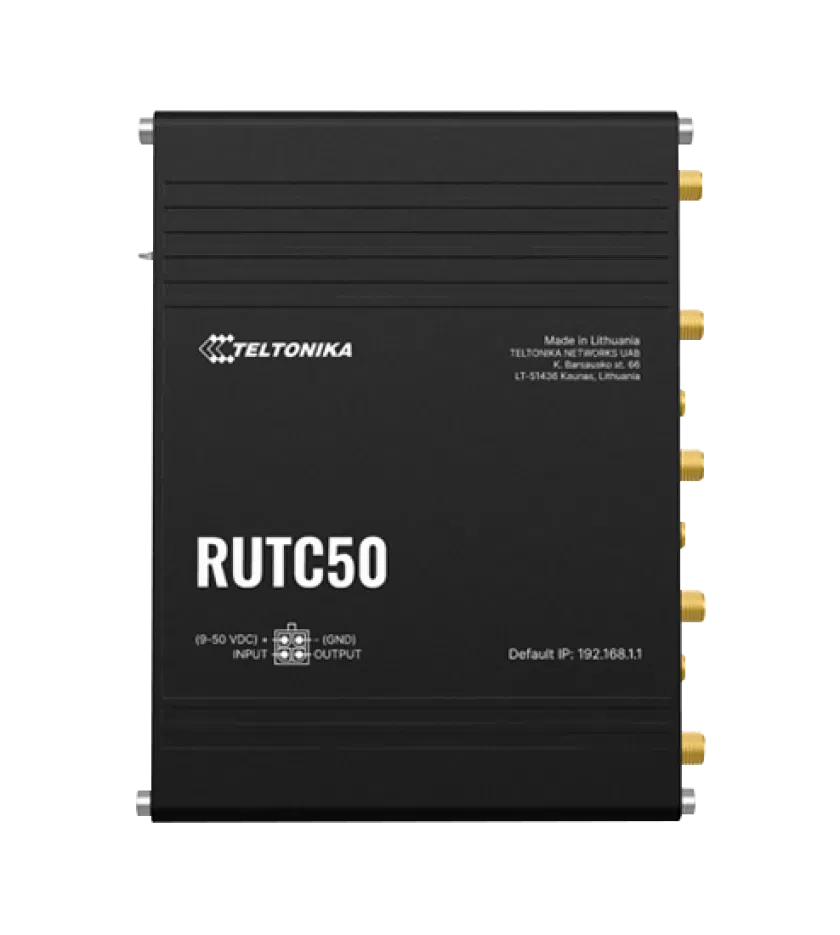

The Teltonika RUTC50 is a cutting-edge 5G router designed to deliver ultra-high-speed connectivity and versatile performance for various industrial applications. Featuring dual-band Wi-Fi 6 technology with multi-user MIMO, it provides seamless wireless communication with speeds reaching up to 3.4 Gbps. Equipped with dual SIM and auto-failover, it ensures continuous, reliable connectivity, supported by five Gigabit Ethernet ports for flexible networking options.
The RUTC50 supports both Standalone (SA) and Non-Standalone (NSA) 5G architectures, while also offering backward compatibility with 4G (Cat 20) and 3G networks, making it ideal for environments where robust performance is essential. Additionally, the router features GNSS for precise location tracking, advanced processing power for multi-user and edge computing applications, and versatile WAN backup options to maintain constant uptime.
Range Features
An overview of what’s included in this range
-
5G Connectivity: Ultra-fast cellular speeds of up to 3.4 Gbps, ideal for high-bandwidth industrial applications.
-
Wi-Fi 6 Technology: Dual-band wireless with multi-user MIMO for faster, more reliable connections, supporting multiple devices simultaneously.
-
Dual SIM with Auto-Failover: Ensures continuous connectivity with automatic switching between SIM cards in case of network issues.
-
Gigabit Ethernet: Five Gigabit Ethernet ports for high-speed wired connections and versatile network setups.
-
SA and NSA 5G Support: Compatible with both Standalone (SA) and Non-Standalone (NSA) 5G architectures, ensuring future-proof compatibility.
-
Backward Compatibility: Works with 4G (Cat 20) and 3G networks, providing flexibility in areas where 5G isn’t yet available.
-
GNSS Integration: Built-in GNSS (Global Navigation Satellite System) for precise location tracking and geofencing applications.
-
Enhanced Processing Power: Optimised for multi-user environments and edge computing applications, offering fast and efficient data processing.
Downloads
for RUTX50 5G industrial router
| Category | Specification |
|---|---|
Mobile Technology | 5G: Sub-6 GHz, SA/NSA, 2.4/3.4 Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2) 4G LTE: Cat 20, 2.0 Gbps DL, 210 Mbps UL 3G: 42 Mbps DL, 5.76 Mbps UL |
3GPP Release | Release 16 |
SIM Slots | 2 SIM cards, auto-switch cases: weak signal, data limit, roaming, network issues |
Wi-Fi | Wi-Fi 6 (802.11b/g/n/ac/ax), Dual Band (2.4 GHz & 5 GHz), MU-MIMO Data rates: 2402 Mbps (5 GHz), 576 Mbps (2.4 GHz) |
Wi-Fi Users | Up to 512 simultaneous connections |
Ethernet Ports | 1 x WAN (10/100/1000 Mbps), 4 x LAN (10/100/1000 Mbps) |
Network Security | WPA2-Enterprise, WPA3, AES-CCMP, 802.11w (PMF), Port Forward, Traffic Rules, DDOS Protection |
Routing | Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP) |
VPN Support | OpenVPN, IPsec, WireGuard, SSTP, ZeroTier, Tinc, DMVPN |
GNSS (GPS, GLONASS, BeiDou, Galileo) | |
I/O Interfaces | 1 x Digital Input, 1 x Digital Output (Configurable), USB 2.0 port |
CPU & Memory | Mediatek Dual-Core 1.3 GHz ARM Cortex A53, 512 MB DDR3 RAM, 512 MB NAND Flash |
Power Supply | 9 – 50 VDC, Passive PoE support, Idle: < 4.5 W, Max: < 13.5 W |
Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
130.4 x 42.6 x 103.4 mm (5.13 x 1.68 x 4.07 in), Weight: 452 g (1 lb) | |
Casing | Anodized aluminum housing, IP30 rating |
Management & Monitoring | Teltonika RMS, WebUI, CLI, FOTA, JSON-RPC, SNMP, SSH, MQTT |
Mounting Options | DIN rail, wall mount, flat surface (additional kits required) |
Unit price (net) | £ 410.51 |
In stock | Available from stock |
