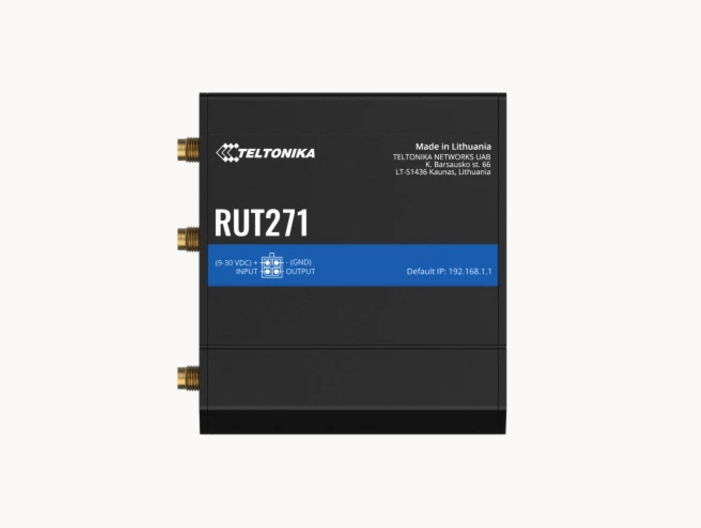

RUT271 5G RedCap Router
- Technology
- Routers, gateways, modems and switches
- Partner
- Teltonika Networks
The RUT271 is an innovative RedCap 5G router designed to seamlessly bridge the gap between 4G LTE and full-capacity 5G. It offers advanced connectivity solutions tailored for industries and businesses seeking cost-effective performance without the full expense of high-capacity 5G. Operating on 5G Standalone (SA) architecture, it delivers the low latency and improved data efficiency that 5G is known for while remaining independent of legacy LTE networks.
This router supports up to 50 wireless devices, making it a versatile choice for small to medium-sized networks. It also provides backward compatibility with 4G LTE Cat 4, ensuring connectivity in areas where 5G coverage may be limited. Its automatic WAN failover feature ensures uninterrupted network access by switching to a backup connection if the primary WAN fails, a critical function for industries where connectivity is essential.
Range features
An overview of what’s in the range
-
Low latency – Achieves the reduced latency characteristic of 5G Standalone (SA) networks, ideal for time-sensitive applications
-
High capacity – Supports up to 50 connected devices simultaneously, ensuring reliable performance in busy environments
-
Affordable pricing – Delivers advanced 5G features at a cost-effective price, leveraging RedCap technology for streamlined efficiency
-
Future-proof design – Incorporates 5G technology while maintaining compatibility with evolving network requirements
-
Backward compatibility – Fully compatible with 4G LTE Cat 4, providing flexibility in areas with limited 5G coverage
-
Wi-Fi support – Functions as a wireless access point, offering IEEE 802.11b/g/n (Wi-Fi 4) connectivity
-
Hotspot functionality – Provides secure and reliable Wi-Fi access for users, perfect for business or public use cases
| Category | Specification |
|---|---|
Mobile module | 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL |
3GPP release | Release 17 RedCap |
WAN | 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Operating system | RutOS (OpenWrt based Linux OS) |
Input | 1 x digital input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high |
Output | 1 x digital output, open collector output, max output 30 V, 300 mA |
Connector | 4-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
Power | 1 x 4-pin power connector |
Antennas | 2 x SMA for mobile, 1 x RP-SMA for Wi-Fi |
Dimensions (W x H x D) | 83 x 25 x 74 mm |
Weight | 130g |
Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating temperature | -40 °C to 75 °C |
Unit price (net) | £ 224.31 |
In stock | Available from stock |
FAQs
for RUT271 5G RedCap Router
The Teltonika RUT271 is a compact, industrial-grade cellular router that leverages 5G RedCap (Reduced Capability) based on 3GPP Release 17. This technology is designed to bridge the gap between LTE Cat 4 and full 5G by providing reduced latency, higher efficiency, and enhanced network responsiveness at a lower cost and power consumption. 5G RedCap targets applications where ultra-high throughput is not required but where 5G’s modern radio and core infrastructure bring tangible benefits.
The RUT271 can deliver downlink speeds up to 223 Mbps and uplink up to 123 Mbps in 5G NR SA (Stand-Alone) networks. These rates vary depending on network conditions, cell load, and distance from the base station. On LTE fallback (Cat 4), it achieves a max. speed of around 195 Mbps for the downlink and 105 Mbps for the uplink. This makes it suitable for real-time data transmission in smart cities, video surveillance, connected kiosks, or industrial automation, where stable mid-range performance is required.
Yes, the device supports full backward compatibility with 4G LTE Cat 4 networks. This ensures uninterrupted operation in areas where 5G NR is not yet available or is only partially deployed. The automatic network fallback feature ensures seamless switching between 5G and LTE, offering resilience for mission-critical IoT or remote monitoring installations, where connectivity must be maintained regardless of local network infrastructure.
The router features 2 Fast Ethernet ports (10/100 Mbps), which are software-configurable for LAN/WAN roles, enabling flexible deployment topologies. For cellular connectivity, it includes two SMA connectors for external 5G/4G antennas, and one SMA for the Wi-Fi antenna, allowing extended reception range with high-gain antennas. Additionally, there is one digital Input and one digital Output for remote control and monitoring (e.g. triggering alarms, reading sensor input), and a single SIM slot (Mini-SIM 2FF format) for mobile network access.
Yes. It comes with a built-in 2.4 GHz Wi-Fi 4 (802.11 b/g/n) module supporting Access Point, Station, and AP+STA mode. The maximum data rate is up to 150 Mbps, and it supports up to 50 simultaneous clients, making it ideal for mobile setups like service vehicles or field gateways. Advanced features include SSID hiding, client isolation, MAC filtering, and WPA3-Personal and WPA2-Enterprise security modes. It further provides Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v) and radio resource measurement (802.11k).
The RUT271 offers robust failover capabilities including automatic cellular failover between 5G and LTE, WAN-to-cellular failover, and Wi-Fi-as-WAN fallback. It includes load balancing and custom traffic rules for routing based on IP, port, or protocol. For network backup, Wi-Fi WAN, mobile, VRRP, and wired options for automatic failover can be used. Advanced routing protocols such as VRRP (Virtual Router Redundancy Protocol) and static or dynamic routes (e.g., BGP, RIP, OSPF) ensure uninterrupted network operation in demanding applications, such as traffic infrastructure or remote telemetry units.
The RUT271 is designed for harsh conditions with a aluminum housing and DIN-rail mountability. It supports an operating temperature range from –40 °C to +75 °C, humidity tolerance up to 90%, and input voltage range of 9–30 VDC, which makes it ideal for solar-powered or vehicular systems. The device is certified with CE, UKCA and FCC/IC, ensuring regulatory compliance for professional use cases across Europe and beyond.
The RUT271 is fully integrated with Teltonika RMS (Remote Management System), which provides centralized cloud-based configuration, diagnostics, firmware updates, and device health monitoring. RMS also offers VPN hub creation, firewall and access control configuration, and data usage reporting.
The RMS enabling secure monitoring, configuration, and maintenance of multiple devices over-the-air, including remote access to connected equipment. The RMS also provides access to the device’s WebUI and CLI (ssh).
