MA510-GL CAT-M1/NB2 LGA module
- Partner
- Fibocom

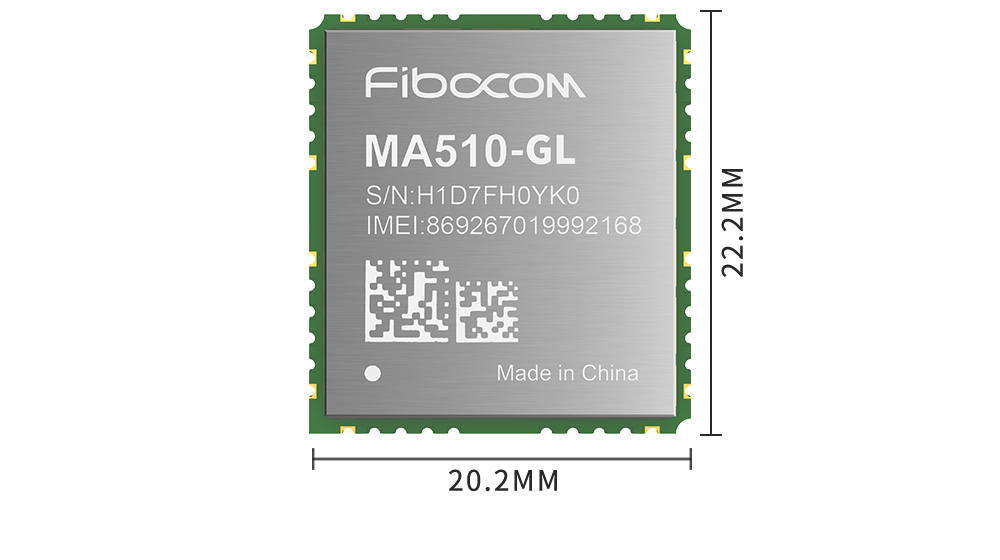

The Fibocom MA510-GL is a compact, high-performance IoT module series based on the Qualcomm platform, supporting LTE Cat M1, Cat NB2, and EGPRS with global band coverage, including power class 2/3 and 450MHz. Packaged in LCC+LGA format, it offers optional GNSS and multiple global certifications.
Compliant with 3GPP Rel.14, the module supports PSM, eDRX, and industrial protocols like MQTT, CoAP, and LwM2M over interfaces such as UART, USB, I2C, and I2S. It is optimised for low-power, space-constrained IoT applications including smart metering, asset tracking, and smart city deployments.
The latest MA510-GL-33 variant adds 3GPP Rel.17 NTN support, enabling resilient satellite connectivity for remote and mission-critical applications like maritime transport and emergency communications.
Range features
A high level overview of what this range offers
-
Global LPWA Support (Cat M1/NB2/EGPRS) – Flexible, worldwide connectivity including 2G fallback
-
450 MHz Band & Power Class 2/3 – Ideal for utility and private LTE networks with extended coverage
-
3GPP Rel.14 + PSM/eDRX – Ultra-low power consumption for long battery life
-
Optional GNSS (GPS, GLONASS, Galileo, BeiDou) – Enables accurate asset tracking and positioning
-
Rel.17 NTN (MA510-GL-33 variant) – Satellite + cellular connectivity for remote and maritime applications
-
Compact LCC+LGA Package – Easy integration into space-constrained IoT devices
-
Built-in IoT Protocols – (MQTT, CoAP, LwM2M) – Simplifies development with ready-to-use networking stacks
-
Industrial Interfaces (UART, USB, I2C, I2S) – Broad hardware compatibility for diverse use cases
-
Global Certifications – Faster go-to-market with regulatory approvals in major regions.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Dimension (mm) | 22.2×20.2×2.1 |
LTE | Cat M1: B1/2/3/4/5/8/12/13/18/19/20/25/26/27/28/66/85 |
LTE | Cat NB2: B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85 |
LTE TDD | NA |
WCDMA | NA |
TD-SCDMA | NA |
EVDO | NA |
CDMA2000 1X | NA |
GSM/GPRS/EDGE | 850/900/1800/1900MHz |
Power supply | MA510-GL-00：3.3V ~ 4.5V(Typical 3.8V) |
Power supply | MA510-GL-01：2.65V~4.5V(Typical 3.8V) |
Operating temperature | -30°C – +75°C |
