NL668 4G Cat-4 LGA module
- Technology
- 4G modules
- Partner
- Fibocom

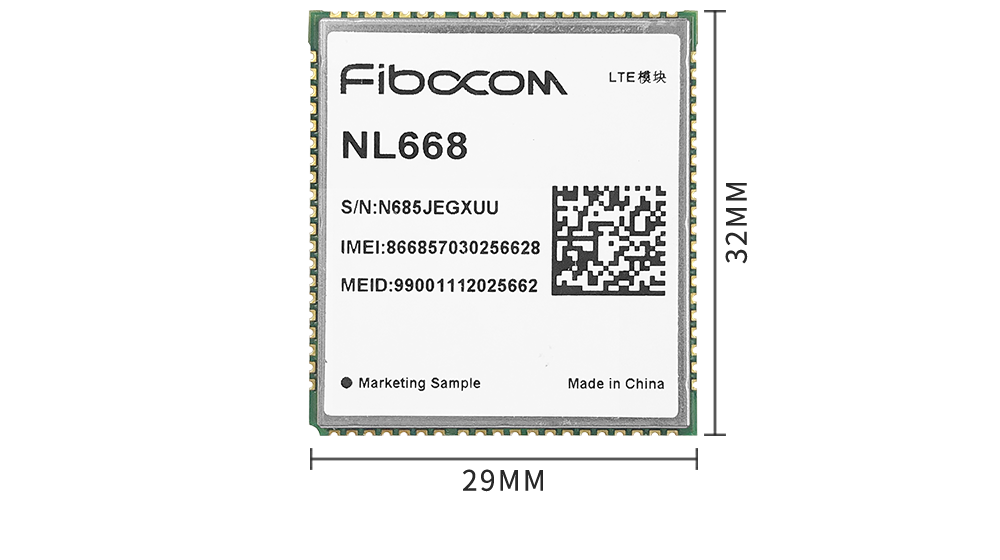

The Fibocom NL668-AM LTE Cat 4 module is well-suited for North American IoT applications, thanks to its combination of performance, reliability, and flexible connectivity options. Its 150 Mbps downlink and 50 Mbps uplink speeds make it a strong candidate for industrial IoT, C-V2X, and gateway applications. The LCC+LGA form factor (32.0 × 29.0 × 2.4 mm) ensures easy integration into compact devices, while WCDMA fallback provides network redundancy.
It supports rich industry-standard interfaces for seamless hardware and software integration. Diversity antenna support enhances signal quality and reliability. Multiple memory configurations optimise performance for different IoT use cases.
Range features
An overview of what’s in the range
- Network support – LTE Cat 4 with WCDMA fallback
- Data rates – 150 Mbps downlink, 50 Mbps uplink
- Form factor – LCC+LGA (32.0 × 29.0 × 2.4 mm)
- Reliability – High-performance, low-latency, and robust connectivity
- Interfaces – Rich industry-standard interfaces for hardware/software integration
- Antenna – Diversity support for improved signal quality and reliability
- Memory – Multiple configurations for optimised performance
- IoT applications – Suitable for industrial routers, industrial gateways, and C-V2X
| Category | Specification |
|---|---|
Package | LCC+LGA |
Dimension (mm) | 32.029.02.4 |
LTE FDD | B2/4/5/12/13/17/66/71 |
LTE TDD | NA |
WCDMA | B2/4/5 |
TD-SCDMA | NA |
EVDO | NA |
CDMA2000 1X | NA |
GSM/GPRS/EDGE | NA |
Power supply | 3.3V – 4.3V (Typical 3.8V) |
Operating temp | -30°C ~ +75°C |
Extended temp | -40°C – +85°C |
