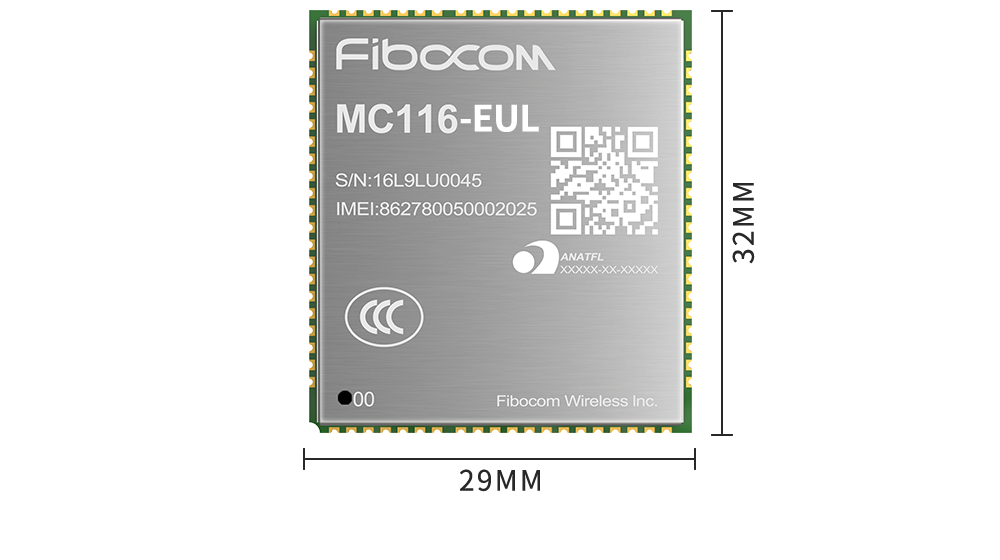

The Fibocom MC116-EUL is a high-performance LTE Cat 1 module designed to deliver reliable and cost-effective cellular connectivity. Based on the Qualcomm platform, it supports LTE FDD, WCDMA, and GSM networks, ensuring broad compatibility across Europe and Latin America.
With downlink speeds of up to 10 Mbps and uplink speeds of up to 5 Mbps, the MC116-EUL offers an ideal balance between performance and power efficiency for mid-speed IoT applications.
The module adopts a compact LCC+LGA package that is pin-to-pin compatible with Fibocom’s Cat 4 NL668 series, enabling smooth product migration and scalability.
Range features
An overview of what’s in the range
- Cellular support – LTE FDD / WCDMA / GSM
- Peak speeds – 10 Mbps DL / 5 Mbps UL
- Platform – Qualcomm-based
- Form factor – LCC+LGA, compatible with Fibocom NL668
- Regions – Optimised for Europe and Latin America
- Interfaces – UART, USB, PCM, I2C, GPIO, ADC, and more
- GNSS support – Optional (depending on variant)
Package | LCC+LGA |
Dimension (mm) | 32x29x2.4 |
LTE FDD | B1/2/3/4/7/8/20/28 |
LTE TDD | B38/40/41(120M) |
WCDMA | B1/2/5/8 |
GSM/GPRS/EDGE | 850/900/1800/1900MHz |
Power supply | 3.3V–4.3V (Typical 3.8V) |
Operating temp. | -30°C – +75°C |
