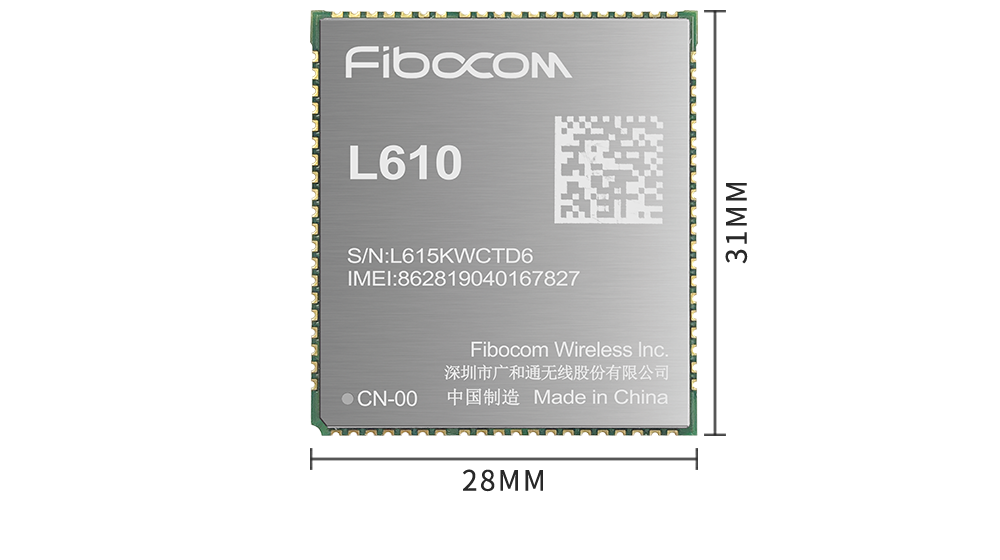

L610 4G Cat-1bis LGA module
- Technology
- 4G modules
- Partner
- Fibocom
The L610-EU is a 4G LTE Cat 1 bis wireless module tailored for IoT applications requiring reliable, medium to low-speed connectivity. It supports LTE and GSM dual-mode communication, along with features such as VoLTE, audio, camera, LCD, keypad, and more. Some variants also offer Wi-Fi scanning or Bluetooth for expanded functionality.
Designed to meet diverse IoT integration needs, the L610-EU includes versatile interfaces like USB, UART, SPI, I2C, and SDIO. It supports key European frequency bands, while the L610-CN and L610-LA models serve Asian and Latin American markets.
With an LCC+LGA package and pin-to-pin compatibility with the NL668 and L716 series, the L610-EU is an excellent fit for applications such as mobile payments, shared devices, industrial automation, asset tracking and aftermarket vehicle solutions.
Range features
An overview of what’s in the range
- 4G LTE Cat 1 bis with GSM fallback
- VoLTE support for voice-enabled IoT applications
- Interfaces for audio, camera, LCD, and keypad
- Select models with Wi-Fi scan or Bluetooth
- USB / UART / SPI / I2C / SDIO interfaces for flexible integration
- Supports major European LTE bands
- Regional variants (L610-CN, L610-LA) for Asia and Latin America
- LCC + LGA package
- Pin-to-pin compatible with NL668 and L716 series
- Ideal for:
- Smart payments
- Shared devices
- Industrial IoT
- Asset tracking
- Vehicle aftermarket solutions
Package | LCC+LGA |
Dimension (mm) | 31.0×28.0x2.35 |
LTE FDD | B1/3/7/8/20/28 |
LTE TDD | NA |
WCDMA | NA |
TD-SCDMA | NA |
EVDO | NA |
CDMA2000 1X | NA |
GSM/GPRS/EDGE | 900/1800MHZ |
Power supply | 3.4V ~ 4.3V (Typical 3.8V) |
Operating temp | -30°C ~ +75°C |
