SAW Diplexers
- Technology
- RF Filters
- Partner
- Tai-Saw Technology

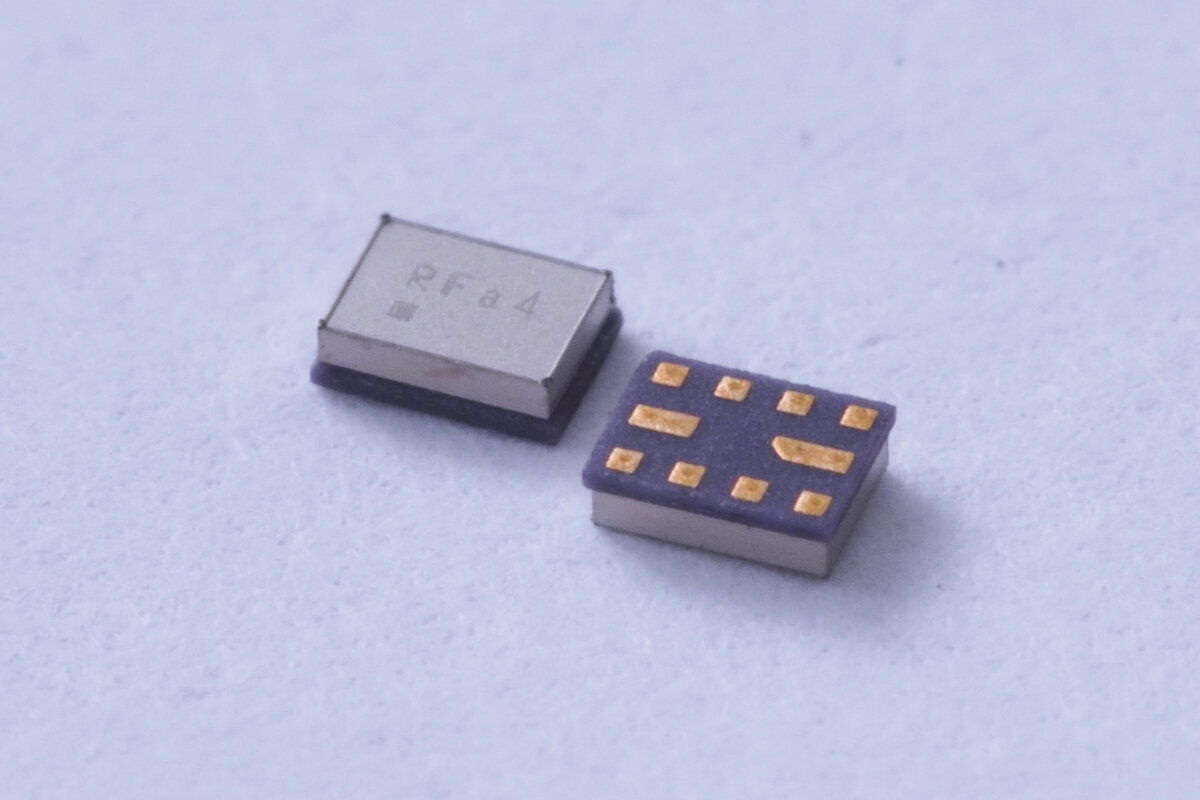

SAW Diplexers are used to combine or separate different bands in one technology, here L1, L2 and L5 sub-bands in GPS, GLONASS, GALILEO and BEIDOU multiband systems.
Tai-Saw is a leading provider of surface acoustic wave (SAW) devices and quartz timing, globally with multiple facilities. Their products are used in applications across industrial, telecoms, consumer and for automotive grade solutions.
Range features
A high level overview of what this range offers
- GPS L1, L2, L5
- GLONASS G1, G2, G3
- GALILEO E1, E6, E5a and E5b
- 50 Ohm I/O Impedance
- Packages 3 x 3 or 5 x 5 mm
- Automotive AEC-Q200 upon request
Downloads
for SAW Diplexers
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Frequencies | Bandwidth | Package | Note |
|---|---|---|---|---|
TE0130A | 1206 / 1582 MHz | 83 / 46 MHz | 5 x 5 mm | GPS L1/L2 |
TE0131A | 1222 / 1575 MHz | 52 / 2.4 MHz | 5 x 5 mm | GPS L1/L2 |
TE0137B | 1223 / 1582 MHz | 52 / 46 MHz | 3 x 3 mm | GPS L1/L2 |
TE0133B | 1189 / 1582 MHz | 50 / 47 MHz | 3 x 3 mm | GPS L1 / L5 |
