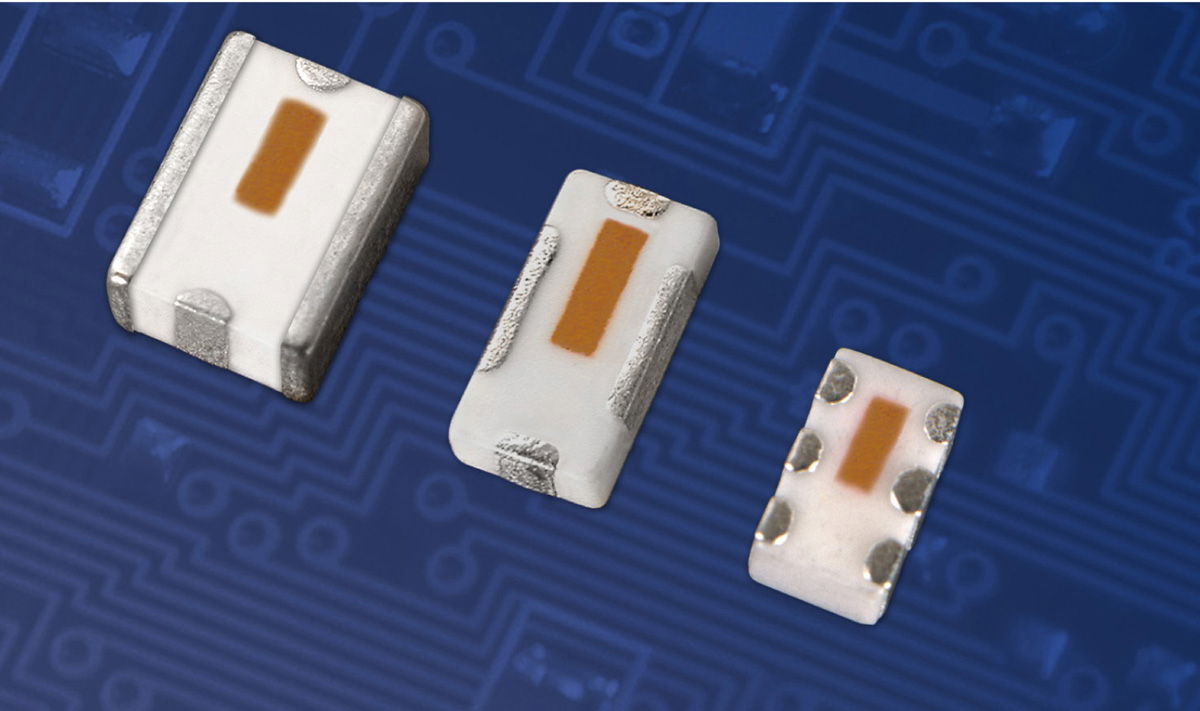

Low Pass Filter (LPF)

Low Pass Filters (LPF) are used in electronics to extract frequency signals in the lower frequency range, i.e. higher signal frequencies above a defined cut-off frequency are suppressed (attenuated). Johanson Technology’s LPF portfolio covers a wide frequency range from 0,5GHz to 5.875GHz. It includes filters for many different radio technology applications. Components of this type are supplied in the case sizes EIA 0402, EIA 0603, EIA 0805, EIA 0806, EIA1206 and EIA 1210. All integrated passive components, here the Low Pass Filters, are MSL 1, regardless of ceramic or termination. The entire product family is RoHS 3 compliant (all prohibited materials are absent).

Low Pass Filter (LPF)

Range features

A high level overview of what this range offers

  • Custom Solutions
  • LTCC (Low Temperature Co-Fired Ceramics
  • Low Insertion Loss
  • Ultra-Low Profiles
  • Extremely Temperature Stable
  • Surface Mount
  • RoHS/REACH Complaint
  • AEC-Q200 Automotive Qualification (as required)

Downloads

for Low Pass Filter (LPF)

pdf
Johanson Technology – Product Catalogue
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

Part numberFrequency [MHz)Insertion loss / Return lossAttenuationCase size (EIA)

0400LP15A0122

312-434

1.3 dB max. /

9.5 dB min.

28 dB @ 624-630 MHz

30 dB @ 800-900 MHz

35 dB @ 900-950 MHZ

38 dB @ 1575MHz

34 dB @ 1700-2100 MHz

0805

0400LP15A0122E-AEC

312-434

1.3 dB max. /

9.5 dB min

28 dB @ 624-630 MHz

30 dB @ 800-900 MHz

35 dB @ 900-950 MHZ

38 dB @ 1575MHz

34 dB @ 1700-2100 MHz

0805

0500LP15A500

0-500

0.7 dB max. /

9.5 dB min.

9 dB @ 824-960 MHz

25dB @ 1710-1990 MHz

25 dB @ 2400-4000 MHz

0805

0868LP15A020

858-878

0.5 dB max. /

14 dB min.

30 dB @ 2 x f0

40 dB @ 2 x f0

0805
