Ceramic Coaxial Resonator Band Pass Filters

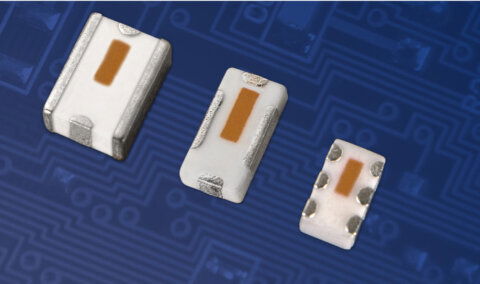

Johanson’s high rejection ceramic coaxial resonator filters offer excellent narrow band filtering performance. These surface mount ceramic mono-block cavity filters are able to reject 50dB in less than 160MHz and are optimized for applications such as UNII, U-NII Low, U-NII High, U-NII Upper, U-NII-2A, U-NII-3, and 802.11ax. AEC-Q200 Automotive Qualification available if required.

Ceramic Coaxial Resonator Band Pass Filters

Downloads

for Ceramic Coaxial Resonator Band Pass Filters

pdf
Johanson Technology – Product Catalogue
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelFrequencyInsertion lossReturn lossAttenuation

5235CR45A0180

5150-5330 MHz

1.8 dB

10 dB

25dB @ 100-48055 typ. (45 min.) @ 30 – 2700 MHz

48 typ. (42 min.) @ 3453 – 3547 MHz

45 typ. (40 min.) @ 3667 – 3883 MHz

52 typ. (50 min.) @ 5490 – 5850 MHz

5697CR45A0360

5490-5850

1.7 dB

10 dB

48 typ. (43 min.) @ 30-2700 MHz

45 typ. (42 min.) @ 3453-3547 MHz

45 typ. (40 min.) @ 3667-3883 MHz

52 typ. (50 min.)@ 5150 – 5330 MHz
