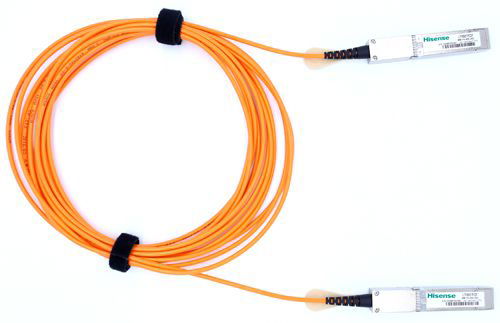

Active Optical Cable (AOC) – Optical Break-Out
- Technology
- Fibre optic transceivers
- Partner
- Hisense Broadband
The Hisense range of AOC optical break-outs cover a variety of form factors and data-rates from 25 to 200 Gb/s for applications in High Performance Computing (HPC) interconnects, Data Centre (DC) networking, InfiniBand EDR/QDR interconnects, networked storage systems, inter-rack/intra-rack, and optical data break-out applications.
Each cable solution is configured for lowest weight, dimensions and power consumption when compared to alternative copper solutions. The cables are designed for easy cabinet installment due to small bend radius.
AOC solutions from Hisense are optimised for high-port count architectures and have low-cost performance per interconnect in focus.
Range features
A high level overview of what this range offers
- SFP28 electrical interface compliant to SFF-8431 and mechanical specification according to SFF-8432
- CML compatible electrical I/O
- Up to 100 meters over Multi-mode (MM) OM4 cable
- Monitoring interface available on certain module types, accessible via 2-wire serial interface
- Standard cable lengths available, custom lengths on request
- Compliance to QSFP-DD, QSFP56, QSFP28, QSFP+, and SFP28 Multiple Supplier Agreements (MSA)
- Hot pluggable, low power consumption designs
- 850 nm VCSEL / Photo-diode array technology
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Package type A | Package type B | Reach (m) | Temperature ranges (°C) | Data-Rate (Gb/s) | Fiber type / wavelength (nm) |
|---|---|---|---|---|---|---|
LTF8507-PxXX | SFP28 | SFP28 | 1 to 100 | 0 to 70 / 0 to 85 | 25 | Multi-mode / 850 |
DEF8503-4CXX | SFP28 (4x) | QSFP28 | 0.5 to 100 | 0 to 70 | 100 | MM OM4 / 850 |
DEF8504-8CXX | SFP28 (8x) | QSFP-DD | 3 to 100 | 0 to 70 | 200 | MM OM4 / 850 |
DQF8501-4CXX | QSFP+ | QSFP+ | 3 to 100 | 0 to 70 | 40 | MM / 850 |
DQF8503-4XXX | QSFP28 | QSFP28 | 3 to 100 | 0 to 70 | 100 | MM OM4 / 850 |
DEF8504-2CXX | QSFP28 (2x) | QSFP-DD | 3 to 100 | 0 to 70 | 200 | MM OM4 / 850 |
DQF8504-4CXX | QSFP-DD | QSFP-DD | 3 to 100 | 0 to 70 | 200 | MM OM4 / 850 |
DME8811-ECXX | QSFP-DD | QSFP56 (2x) | 3 to 100 | 0 to 70 | 200 | MM OM4 / 850 |
DMQ8811-ECXX | QSFP-DD | QSFP-DD | 3 to 100 | 0 to 70 | 200 | MM OM4 / 850 |
