FP-Series Fibre Patch Panels

FOSS fibre panels are available in different configurations, pre-configured with adapters, pigtails, or cable. Panels can also be supplied empty for custom elements to be installed at a later stage.

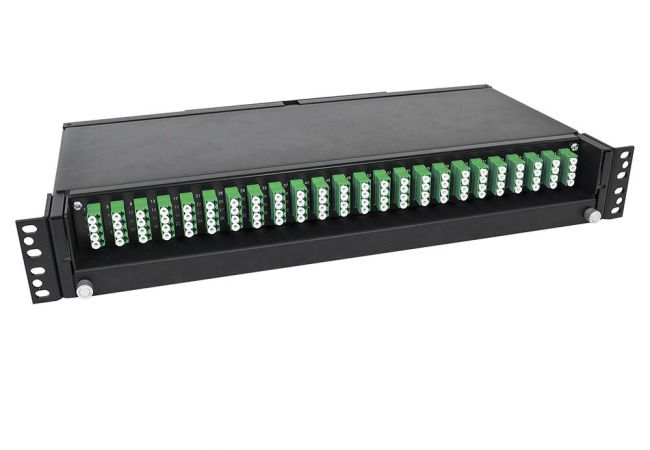

The FP Pro-series patch panel is available as a 1U, 1.5U or 2U type. The 1U targets high-density datacom applications with up to 144 LC terminations. The 1.5U and 2U offer a drawer for easy access to fibre and splicing areas ideally suited for telecom applications. The FPM modular panel series allow mounting of three modules in a 1U frame or 12 modules in a 3U type (288 LC terminations) frame. Modules can be configured with pre-installed adapters, pigtails, or pre-terminated cable.

A variety of panel accessories complement these ranges of panels.

FP-Series Fibre Patch Panels

Range features

A high level overview of what this range offers

  • Panels can be assembled with passive fiber optic modules with up to 18-channels CWDM (multiplexer and demultiplexer) or with optical splitters up to 1×64 port count
  • MPO panels can be configured with up to 144 LC connections and 6×24 MPO supporting OS2, OM3, and OM4 fiber
  • Adapter panels can be supplied with E2000, FC, SC, ST, or LC connectors for either multi-mode OM1/OM2, OM3, or single mode
  • Quality acc. to IEC 61755-1 class C1/C2 dependent on product type
  • Panel accessories include backplates, blind plugs, cable guides, covers and installation kits
  • The FPX series patch panels include rodent resistant entries, have a longer body, screwed adapters, and bigger cassettes for splice protection.
  • Bend insensitive single mode fiber acc. to ITU-T G.657A1 used on many products to meet performance requirements
  • Panels and accessories available in both painted white (RAL9010) and painted black (RAL9011) aluminium

Downloads

for FP-Series Fibre Patch Panels

pdf
Foss – Fibre Systems for Telecom
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

Panel SeriesAdaptersPigtailsCableHeightsMaximum LCOther options

FP Pro

Yes

Yes

Yes

1U, 1.5U, 2U

144

CWDM / Splitters

FPM

Yes

Yes

Yes

1U, 3U

288

CWDM / Splitters

FPX

Screwed

Splice Ready

Pre-terminated

1U, 2U

144

CWDM / Splitters
