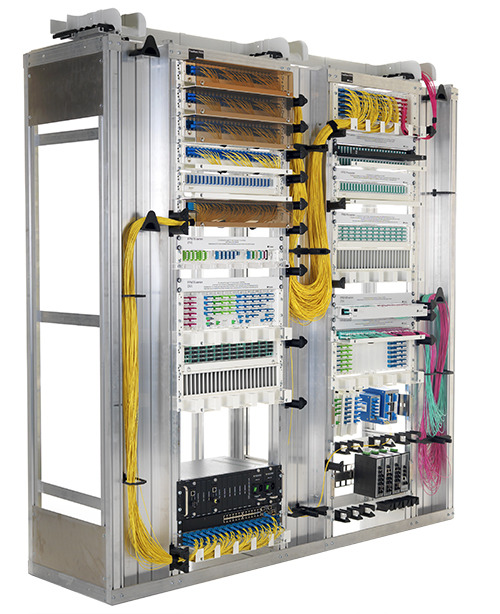

The FOSS rack/frame is designed for mounting FOSS panels, Optical Distribution Frames (ODF) and/or electrical equipment necessary to set up a Fibre to the Home (FTTH) environment.
Due to its simplistic design, the FR70 rack/frame is easy to install and manage with low maintenance costs, yet it is very durable allowing scaling and upgrades with maximum simplicity.
The rack/frame can be configured with cables, pigtails and patch cords and rack expansion is simple either by using side by side or back to back extensions. As a standalone rack (floor standing) or frame (wall-mounted), it can both allow vertical side and/or top mounted ducting.
Delivered flat packed in several cartons, ensuring easy handling/install.
Range features
A high level overview of what this range offers
- Lightweight rugged unpainted aluminium design with 19” profiles allowing flexibility during ODF installation
- Vertical cord guides for simple yet effective routing, storage, and administration of excess patch cabling
- Standard configuration of 1- to 6-section racks/frames, 1800 (38U), 2000 (42U), or 2200 mm (46U) height variants
- Available as a wall-mounted frame (700 mm depth) or a self-supported rack (600 mm depth)
- Suitable for FP Pro-Series, FPM Series, and FPX Series of patch panels from FOSS
- Typical weight ~13 kg for a single frame section, 2200 mm height
- ETSI variant and custom sizes available on request
- Standard accessories include cable ladders, cord guides, bend control (mandrels), cable distributors, mounting brackets, shelves, raceways, profiles, and adjustable legs
Downloads
for Fibre Optic Racks, Frames and Accessories
What’s in this range?
All the variants in the range and a comparison of what they offer
| Rack / Frame height (mm) | Capacity | Rack depth (mm) | Frame depth (mm) | Sample configurations |
|---|---|---|---|---|
1800 | 38U | 600 | 700 | 1800x2030x600, 3-section rack, 2 vertical guides |
2000 | 42U | 600 | 700 | 2000x3251x700, 4-section frame, 5 vertical guides |
2200 | 46U | 600 | 700 | 2200x1029x600, 1-section rack, 2 vertical guides |
