RedLink® Transmitters and Receivers
- Technology
- Digital fibre optic components
- Partner
- Firecomms

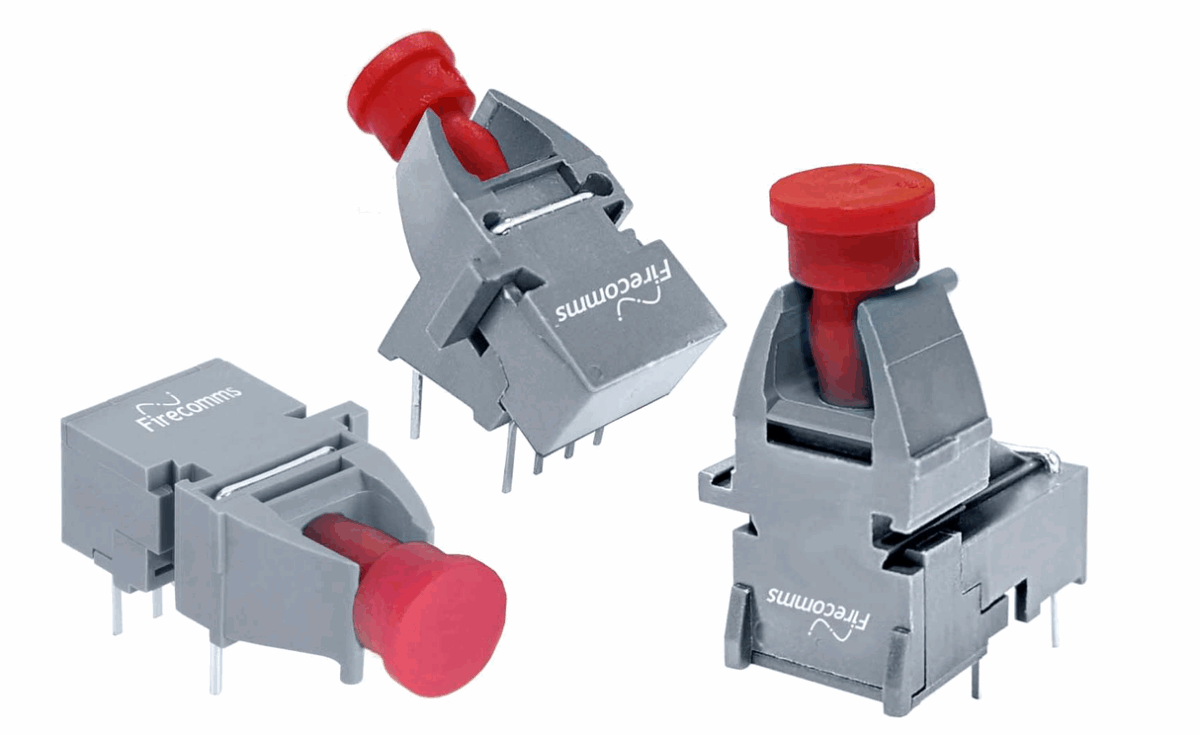

The RedLink transmitters use a visible red wavelength, are intrinsically eye safe, require low operating currents and are highly reliable therefore perfectly suited for automation, industrial control, communications, and in voltage isolation applications.

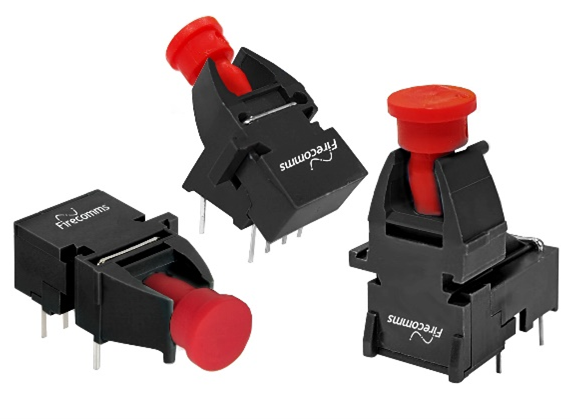

RedLink receivers are robust optical components converting red light back into electrical data by use of integrated pulse and distortion circuitry. As for transmitters, the receivers are also available as both inverting and non-inverting options.
To allow installation into many different environments, the range of RedLink components are available in horizontal, vertical and a 30° tilted option.
Range features
A high level overview of what this range offers
- Typical distances supported are 50 meters step index POF and 100 meters 200 µm PCS/HCS® fibre
- Both 3.3 V and 5 V DC power supply rails can be used with wide 10% tolerance in supply variation
- Wide operating temperature range of -40 to 85°C
- Push Pull TTL Compatible CMOS for 50 MBd components
- 1 MBd devices ideally suited for switching of thyristor gate drivers and direct switching of SCRs and IGBTs
- RoHS compliant and UL 94 V-0 flame retardant designs
- Standards supported include MODBUS, CAN-Bus, Profibus, RS232 and RS485
- Special green wavelength visible LED (530 nm) version available for DC to 1 MBd and extended length application up to 200 meters
- The analogue receiver (Si PD) can be used simply for light detection or in communications links by adding an external TIA
Downloads
for RedLink® Transmitters and Receivers
What’s in this range?
All the variants in the range and a comparison of what they offer
| Data rates | Orientation | Colour | Types | Polarity | Part numbers |
|---|---|---|---|---|---|
DC to 50 MBd | Horizontal, Vertical, Tilted | Black, Grey | Tx, Rx | Inverting, Non-Inverting | FT50MxxR FR50MxxR |
DC to 10 MBd | Horizontal, Vertical, Tilted | Black, Grey | Tx, Rx | Inverting, Non-Inverting | FT10xxxR FR10xxxR |
DC to 5 MBd | Horizontal, Vertical, Tilted | Blue, Grey | Tx, Rx | Inverting, Non-Inverting | FT05xxxR FR05xxxR |
DC to 2 MBd | Horizontal, Vertical, Tilted | Blue | Rx | Inverting | FR20DxIR |
DC to 1 MBd | Horizontal, Vertical, Tilted | Blue, Grey, Green | Tx, Rx | Inverting, Non-Inverting | FT01xxxR FR01xxxR FT01MHNG |
Analog | Horizontal, Vertical, Tilted | Blue | Rx | Inverting | FR00AxAR |
