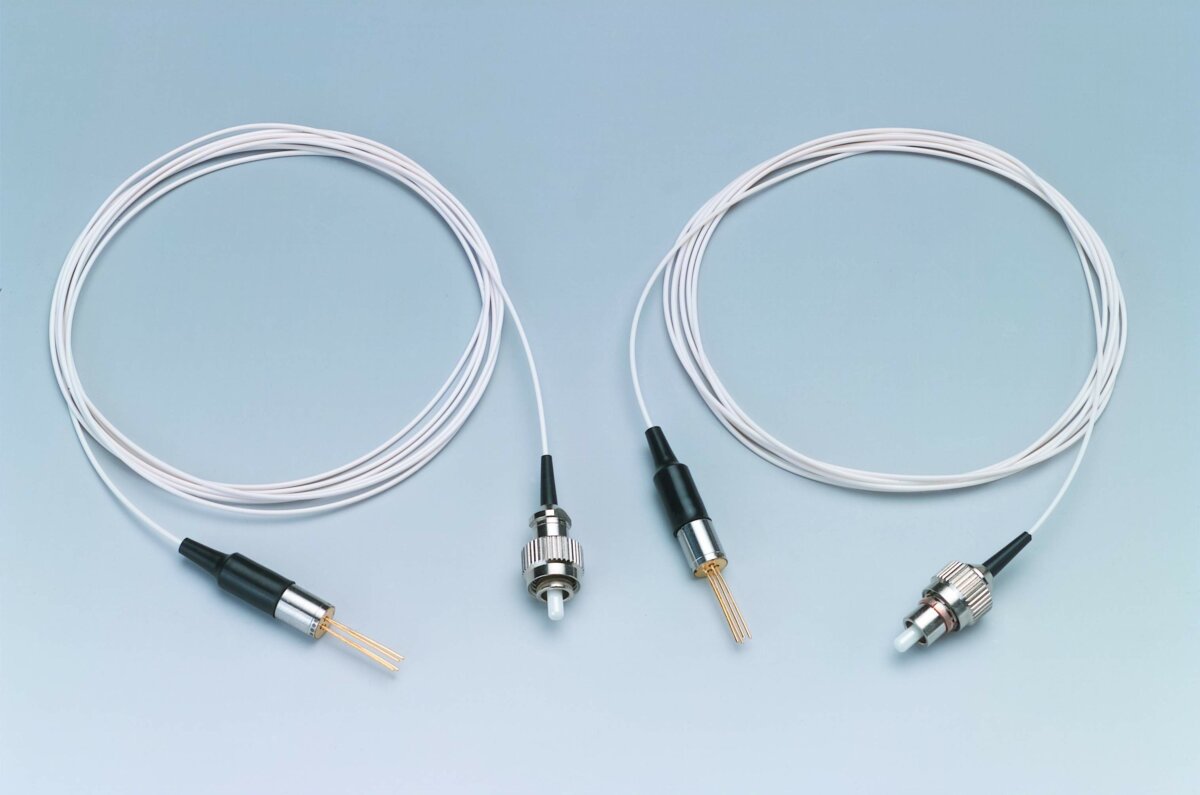

Pigtailed Optical Sub Assembly (OSA)

Pigtailed OSA components provide many advantages over receptacle or barrel type by enabling flexibility of installation location on PCB to improve electrical performance characteristics or allow use of special connectors in harsh environments.

By combining the optical components with selected fibre types, it is possible to create custom devices for many non-datacom applications. Use of Single Mode (SM) Corning ZBL, high-bandwidth Multi-Mode (MM), or OFS specialty fibres, as just a few examples, opens up many possibilities to simplify the overall system design by eliminating the use of extra patch cords and adapters.

With 20+ years of experience in the field of manufacturing optical components, Coretek Opto, is your partner of choice in pigtailed OSAs.

Pigtailed Optical Sub Assembly (OSA)

Range features

A high level overview of what this range offers

  • Commercial or industrial operating temperature range -40 to 85°C
  • Choice of fibre pigtail length, typically 1 meter, with connector of choice
  • Most typical connectors LC, SC, FC available with ultra-polish or angled polished connector end surface, special connectors to include E2000, MIL, or industrial available upon request
  • Choice of laser diode technology (FP, DFB, CWDM) and photo diode (PIN-TIA, APD) types based on application requirements
  • Multi-mode and special fibre types with custom coating, buffer, or jacket are available upon request
  • Standard packaging with industry standard pinning and dimensions or customised housings with clamp options

What’s in this range?

All the variants in the range and a comparison of what they offer

Product typeConnectorsFibre typeApplications

Transmitter (TOSA)

SC/APC, SC/UPC, FC/APC, FC/UPC

SM, MM, Special

Sensing, Test & Measurement, Ethernet

Receiver (ROSA)

SC/APC, SC/UPC, FC/APC, FC/UPC

SM, MM, Special

Sensing, Test & Measurement, Ethernet

Bi-Directional (BOSA)

SC/APC, SC/UPC, FC/APC, FC/UPC, E2000

SM, MM, Special

GPON, EPON, XGPON, FTTx

Dual/Triple/Quad Transmitter (Tx)

SC/APC, SC/UPC, FC/APC, FC/UPC

SM, MM, Special

PON, FTTx, Sensing, Test & Measurement

Dual/Triple/Quad Receiver (Rx)

SC/APC, SC/UPC, FC/APC, FC/UPC

SM, MM, Special

PON, FTTx, Sensing, Test & Measurement

Dual/Triple/Quad Mixed Tx / Rx

SC/APC, SC/UPC, FC/APC, FC/UPC

SM, MM, Special

PON, FTTx, Sensing, Test & Measurement
