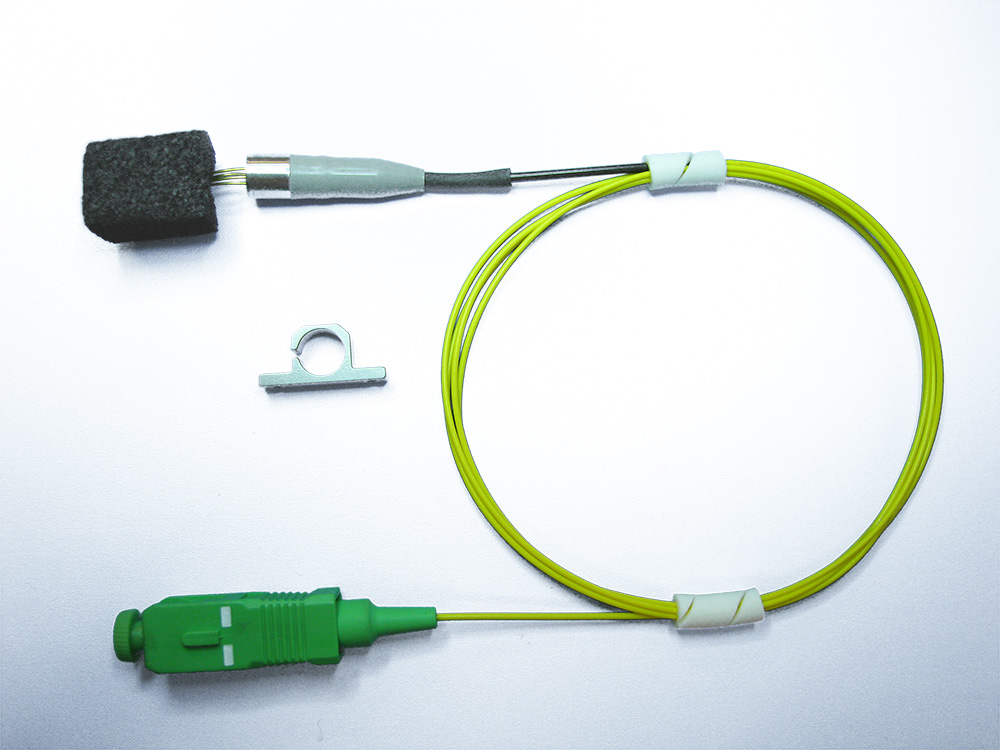

Analogue Laser Diodes – Coaxial Package

AGx’s coaxial package design boasts industry leading high optical output powers in a low-cost footprint through optimisation of chip design, application of special coupling techniques and use of advanced manufacturing processes.

A variety of applications are supported to include CATV return path, RF over fiber (RFoF), wireless CDMA and CATV forward path.

Options include single or dual-stage Faraday optical isolators, output powers, wavelengths, receptacle, or pigtail type with a selection of connectors.

Analogue Laser Diodes – Coaxial Package

Range features

A high level overview of what this range offers

  • Fabry Perot (FP) or Distributed Feedback (DFB) laser types
  • Wide operating temperature ranges with stable optical power and highly linear performance characteristics
  • Hermetically sealed industry standard coaxial packages with standard pinning footprints
  • Optional mounting brackets available on request
  • Both standard pinning and custom pin configurations available
  • Low RIN noise, low tracking error and high linearity
  • Built-in monitor photo diode with low dark current and high responsivity
  • Optional single or dual-stage isolators ensuring excellent optical isolation
  • 1310 nm FP, 1310 nm DFB, 1550 nm and CWDM wavelength options

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelLaser TypeWavelength (nm)Power (mW)Bandwidth (GHz)Applications

FPMR3

FP

1310

Up to 4

2

CATV Return Path, RFoF

PLMR3

DFB

1550

Up to 5

3

CATV Return Path, RFoF

PLMW3

DFB

1550

Up to 5

3

Wireless CDMA, RFoF

PLMF3

DFB

1550

Up to 14

2.7

CATV Forward Path, RFoF

PLMR1XXC

CWDM DFB

1270 to 1610

Up to 4

3

CATV Return Path, RFoF

RLMR3

DFB

1550

Up to 4

3

CATV Return Path, RFoF
