5G solutions FM/FG 150 and FM/FG 160
Supplier: Fibocom
Technology type: Cellular Modules

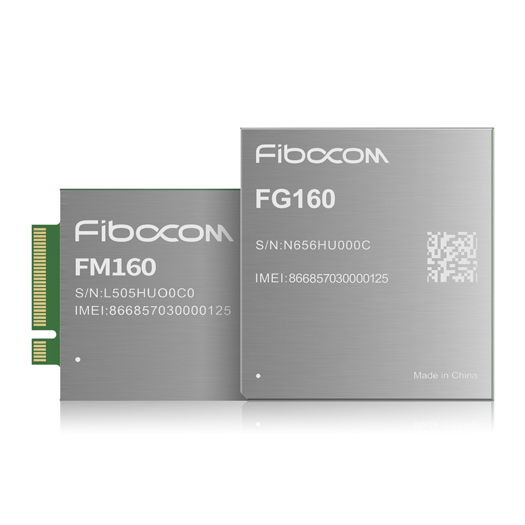

Fx150 and Fx160 are highly integrated 5G wireless communication modules which come either in a M.2 form factor interface or a solder-down LGA variant.
Fx150 is Fibocom's first module for 5G communication that has been released for Asia/ Europe/ Australia regions. The module works with the 5G NR Sub6 band and is compatible with 4G and 3G fall back options.
Fibocom’s latest 5G module is the Fx160 family, which is based on the Qualcomm SDX62 chipset and supports the 3GPP Release 16. Fibocom’s FM160 module adopts M.2 form factor measuring 30x52x2.3mm. It is compatible with Fibocom’s 5G module FM150.
Both module families also support the multi-constellation GNSS receiver (GPS/ Galileo/ GLONASS/ BeiDou.
Range features
A high level overview of what this range offers
- FG/FM 150 - Qualcomm SDX55 based
- 5G NR Sub6 GHz – with 4G and 3G fallback
- FG150 - LGA form factor measuring only 41 x 44 x 2.75mm
- FM150 – M.2 form factor measuring only 30 x 52 x 2.3mm
- GPS/GLONASS/Beidou/Galileo
- Variants for Asia/ Europe/ Australia and North America
- FG/FM 160 - Qualcomm SDX62 based
- NR Sub 6 module - with 3GPP Release 16FG150
- 4G and 3G fallback
- Backwards compatible with 5G FG/FM 150
- GPS/GLONASS/Beidou/Galileo
- Variants for Asia/ Europe/ Australia and North America
What's in this range?
All the variants in the range and a comparison of what they offer
|
5G solutions |
Region |
5G Bands |
Formfactor |
Certifications |
|---|---|---|---|---|
|
FG160-EAU |
Europe, Asia, Australia |
NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78, n79 |
LGA |
CE/RCM/RoHS/PTCRB/GCF |
|
FG160-NA |
North America |
NR: n2, n5, n12, n14, n25, n30, n41, n48, n66, n70, n71, n77 |
LGA |
FCC/IC/RoHS/ PTCRB/GCF |
|
FM160-EAU |
Europe, Latin America, Brazil |
NR: n1, n3, n7, n28, n38, n40, n66, n78 |
M.2 |
CE/RCM/RoHS/PTCRB/GCF |
|
FM160-NA |
North America |
NR: n2, n5, n7, n12, n13*, n14, n25, n26, n30, n41, n48, n53, n70, n71, n66, n77 |
M.2 |
FCC/IC/RoHS/ PTCRB/GCF |
|
FM150-AE |
Europe, Asia & Australia |
NR: n1, n3, n5, n8, n20, n28, n38, n41, n77, n78, n79 |
M.2 |
CE/GCF/RCM/HF/RoHS/DT |
|
FG150-AE |
Europe, Asia & Australia |
NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 |
LGA |
CE/GCF/RCM/HF/RoHS/DT |
|
FM150-NA |
North America |
NR: n2, n5, n7, n12, n25, n41, n48, n66, n71, n77, n78 |
M.2 |
FCC/IC/RoHS/PTCRB /TMO/AT&T/GCF/HF |
