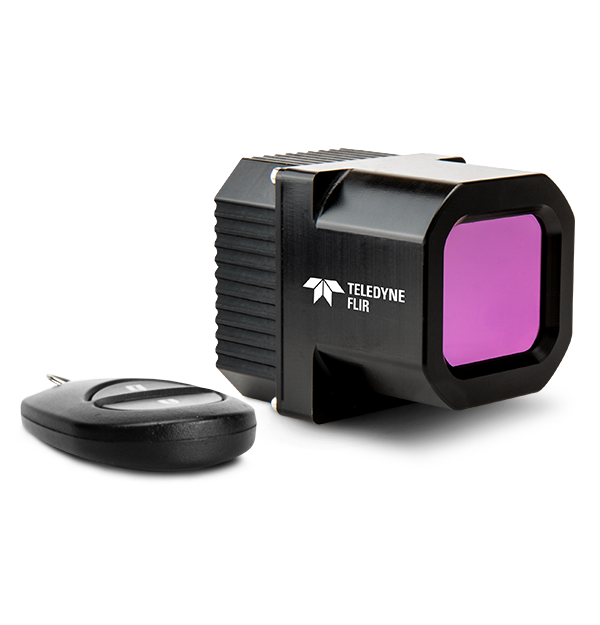

The Teledyne FLIR ADK™ (Automotive Development Kit) is an OEM thermal-imaging camera platform designed to help automotive developers add long-wave infrared (LWIR) thermal vision to ADAS and autonomous-vehicle systems.
Unlike conventional cameras, which depend on visible light, the ADK creates images from heat emitted by objects. This means it can continue to detect pedestrians, animals, vehicles and other objects in conditions where visible cameras can struggle — including darkness, glare and challenging lighting. FLIR specifically positions it as a sensor for applications such as pedestrian detection and automatic emergency braking (AEB).
The current ADK range uses a 640 × 512, 12 µm uncooled VOx microbolometer operating in the 8–14 µm LWIR band, with four horizontal fields of view: 24°, 32°, 50° and 75°. It is available with GMSL1 or GMSL2 interfaces; the older USB-C versions are now discontinued/EOL.
In practical terms, the ADK is less a finished automotive perception system and more a rugged, integration-ready thermal sensor for developers: it supplies thermal video that can be fed into perception, sensor-fusion and AI/analytics systems.
Bereikfuncties
Een algemeen overzicht van wat dit bereik te bieden heeft
- Compact en licht
- Laag stroomverbruik
- Eenvoudige integratie
- Grote verscheidenheid aan lenzen
- 12 µm pitch
- Krachtige ingebouwde videoverwerking
- Hoge gevoeligheid
- IP67-gecertificeerde behuizing
- GMSL-/USB-interfaces
Downloads
voor ADK™ 2.0 LWIR Thermische Beeldvorming Core
Wat zit er in dit assortiment?
Alle varianten in het assortiment en een vergelijking van wat ze bieden
| Model | Interface | Resolution | Pixel pitch | Horizontal FOV | Frame rate | Thermal sensitivity | Radiometry |
|---|---|---|---|---|---|---|---|
40640G024-6PAA1 | GMSL1 | 640 × 512 | 12 µm | 24° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G032-6PAA1 | GMSL1 | 640 × 512 | 12 µm | 32° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G050-6PAA1 | GMSL1 | 640 × 512 | 12 µm | 50° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G075-6PAA1 | GMSL1 | 640 × 512 | 12 µm | 75° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G024-6PAA2 | GMSL2 | 640 × 512 | 12 µm | 24° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G032-6PAA2 | GMSL2 | 640 × 512 | 12 µm | 32° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G050-6PAA2 | GMSL2 | 640 × 512 | 12 µm | 50° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
40640G075-6PAA2 | GMSL2 | 640 × 512 | 12 µm | 75° | 30/60 Hz selectable; 9 Hz optional | <50 mK | No |
