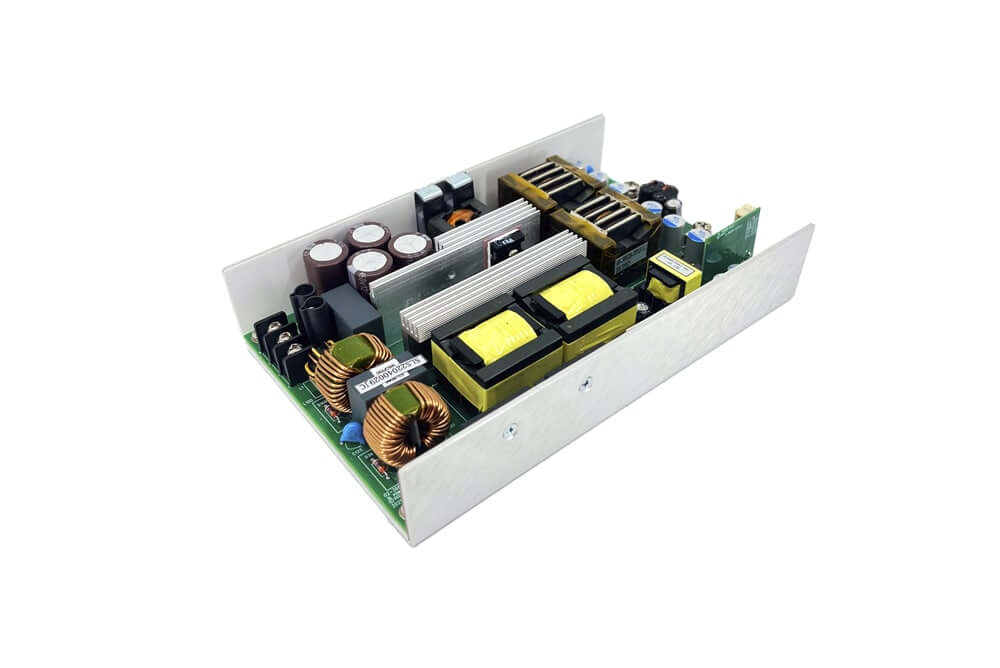

NGB800 series

The Advanced Energy SL Power NGB800 series of open-frame AC-DC power supplies is designed for both medical and Information Technology Equipment (ITE) applications, meeting the necessary safety standards for each.

The series offers four models with single output options of 12 V, 15 V, 24 V, and 48 V. Each model also features an isolated 12 V fan output and a 5 V standby output.

Delivering 800 W of output power, these supplies are ideal for high-demand environments, and they set a benchmark with industry-leading convection power ratings for efficient cooling without forced airflow.

NGB800 series

Features

  • Output power of 800 W with airflow
  • 650 W convection cooled
  • 20ºC to 80ºC operating temperature range
  • 5” X 8” X 1.6” size
  • Less than 100 uA leakage current
  • Universal 85 to 264 VAC input range

Benefits

  • UL/CSA/IEC/IEC60601-1, IEC62368-1 approved
  • Meets 4th edition/heavy industrial EMC
  • Class I Input versions available
  • Meets class B emissions levels
  • 7+ years electrolytic capacitor life
  • 3 Years warranty

Downloads

für NGB800 series

pdf
NGB800 technical reference note
Download
pdf
NGB800 datasheet
Download
SpecificationValue

Output power (W)

800

Length (inches)

8

Width (inches):

5

Height (inches)

1.6

Mounting type

Embedded PSU

Minimum output current (A)

16.7

Maximum output current (A):

57.5

Output voltage range (V):

12V to 48V

Minimum output power (W):

690

Maximum output power (W):

800

Maximum input voltage (V):

264

Warranty (years):

3

Model numberMin. voltage (V)Max. voltage (V)Current (A)Nominal voltage (V)Number of outputs

NGB800S12K

11.4

12.6

57.5

12

1

NGB800S15K

14.25

15.75

46

15

1

NGB800S24K

22.8

25.2

33.3

24

1

NGB800S48K

45.6

50.4

16.7

48

1
