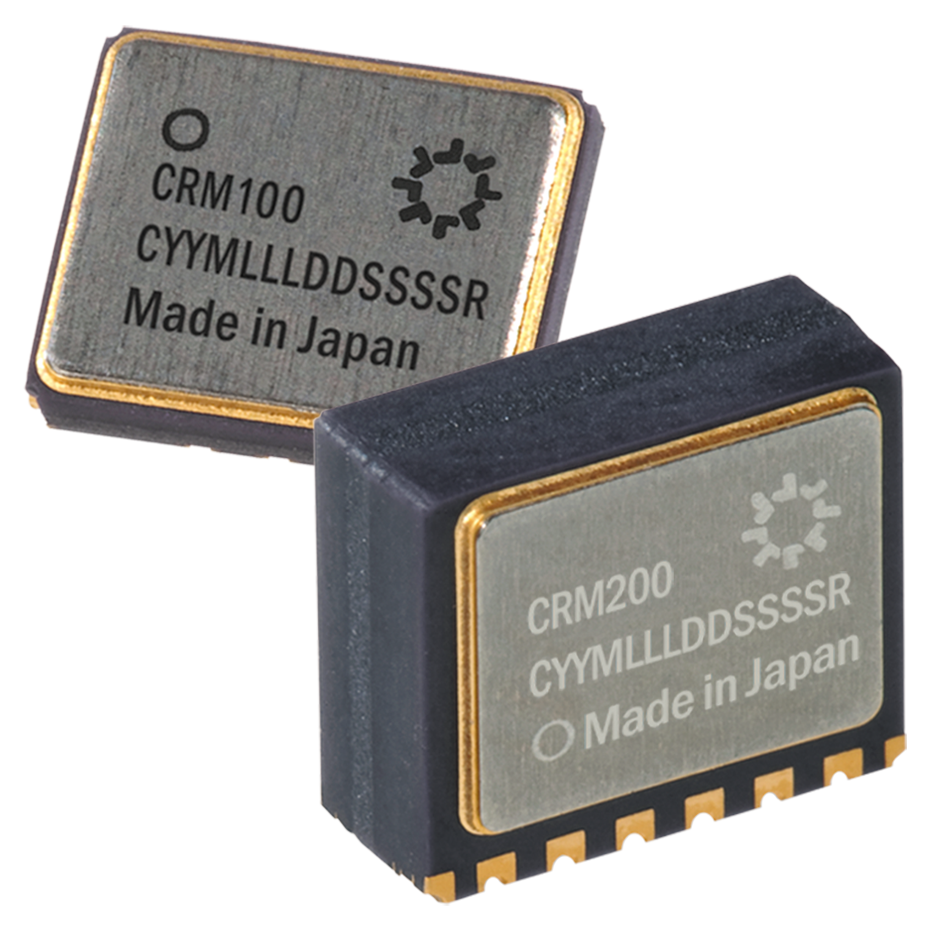

CRM100 und CRM200 bilden eine Serie von Silizium-MEMS-Gyroskopen auf Chip-Ebene von Silicon Sensing, die rauscharme Winkelgeschwindigkeitsmessungen in einem kleinen oberflächenmontierten Gehäuse anbieten. Der CRM100 wird flach auf einer Platine montiert, während die CRM200-Version seitlich montiert wird, was in Kombination die Messung der drei Freiheitsgrade (Rollen, Nicken und Gieren) mit einer einzigen Platine ermöglicht.
Eigenschaften
- Proven and robust 5th generation vibrating structure gyro technology (VSG)
- Class-leading bias and noise over temperature for precise dead reckoning navigation and pointing
- Planar and orthogonal packages (CRM100 and CRM200)
- User-selectable dynamic ranges; 75°/s, 150°/s, 300°/s, 900°/s (max 1,000°/s)
- High rate range version (up to ±2,700°/s) also available
- High bandwidth low noise
- Small (CRM100: 5.7 x 4.8 x 1.2mm, CRM200: 6.3 x 5.5 x 2.7mm)
- User adjustable bandwidth (to 160Hz)
- Analogue and Digital (SPI®) outputs
- Low power, 3.3V supply, 4mA
- Excellent shock and vibration rejection
- Hermetically sealed SMD package
- Integral temperature sensor
- AEC Q100 tested
Downloads
für CRM Pinpoint© Gyroscopes
Verfügbare Modellvariationen
Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen
| Model | CRM100 | CRM102 | CRM200 | CRM202 |
|---|---|---|---|---|
Supply voltage (Vdd) | 3.3v | 3.3v | 3.3v | 3.3v |
Digital dynamic range | ±75o/s to ±900o/s | ±900o/s to ±2700o/s | ±75o/s to ±900o/s | ±900o/s to ±2700o/s |
Analogue dynamic range | ±75o/s to ±900o/s | ±900o/s to ±2700o/s | ±75o/s to ±900o/s | ±900o/s to ±2700o/s |
SF setting error | ±0.5% | ±3.0% | ±0.5% | ±3.0% |
SF error over temp | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
Bias setting error | ±12mV | ±12o/s | ±12mV | ±12o/s |
Bias over temperature | ±3o/sec | ±36o/sec | ±3o/sec | ±36o/sec |
Bias repeatability | ±0.14o/s | ±0.15o/s | ±0.14o/s | ±0.15o/s |
Bias instability | 12o/hr | 80o/hr | 12o/hr | 80o/hr |
Bandwidth (nominal) | 5–160 Hz (User selectable) | 5–160 Hz (User selectable) | 5–160 Hz (User selectable) | 5–160 Hz (User selectable) |
Operating temperature | -40oC to +85oC | -20oC to +85oC | -40oC to +85oC | -20oC to +85oC |
